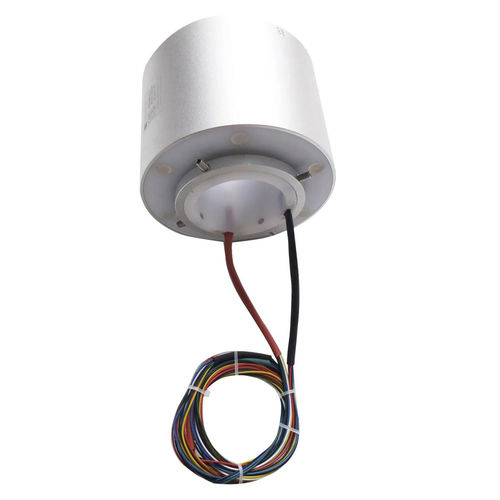

Through-hole electrical slip ring DHK060 series

electro-opticalEthernetgigabit Ethernet

Characteristics Item No.: DHK060-24-2A Inner diameter: 60mm Outer diameter: 130mm Height: 80mm Weight: 1.55kg Construction: Through bore, shaft connected Electric contact material: Gold-Gold, Fiber brush – Ring Working speed: 0~600RPM Current: 2A / channel, can be customized Voltage: 0~440V, can be customized Number of Channels: 24, can be customized Connector: wire connect Transmit electric power and signal for automatic equipment Description: Ingiant is a professional customized slip ring manufacturer, with experienced engineer, QC, and workers team. Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform. It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside ports rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding. Features: We can make IP51~IP65 slip ring for ships, harbor equipment, test equipment and some application which has water or moisture environment, to transmit precision signal, electric power, data etc. Customized Signal type: Solenoid valve, PLC, RS485/232/422, Thermocouple, Sensor, Pulse signal, Encoder, Servo system, CANBUS, Profibus, CC-Link, USB2.0, Ethernet, Gigabit, Video, Voice etc. Advantage: Compact size, high precision, low maintenance, low electric noise, low torque, long lifespan.
