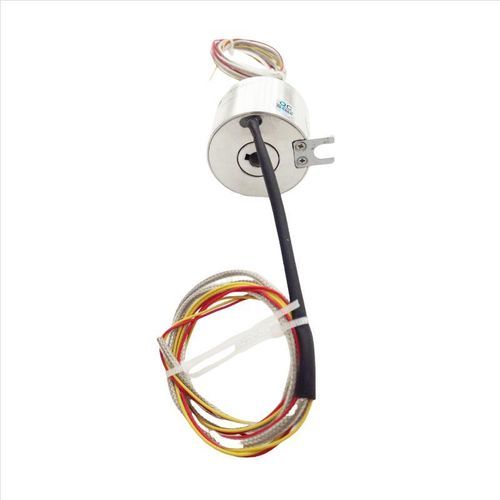

Electric slip ring DHK008-5through-borethrough-holefor industrial applications
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Construction
- through-bore, through-hole
- Applications
- for industrial applications, for LED lighting
- Material
- aluminum alloy
- Other characteristics
- with gold contacts, custom-made, miniature
- Voltage
Min.: 0 V
Max.: 240 V
- Primary current
Min.: 2 A
Max.: 20 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 1,000 rpm
(6,283 rad.min-1)- Number of channels
8 unit
- Internal diameter
8 mm
(0.31 in)- External diameter
Min.: 10 mm
(0.39 in)Max.: 800 mm
(31.5 in)
Description
Short Description
Product Detail
Typical Applications
Product Naming Description
DHK008-5 Through Bore Slip Ring Technical Parameters
Product grades:
General — Speed: 0–200 rpm — Life: 20 million revs
Industrial — Speed: 300–1000 rpm — Life: 60 million revs
Technical parameters:
Technical specifications
- DHK series mini through-hole slip rings for transmitting signals, low/high currents and voltages through a central bore
- Designed to allow passage of pipes, cables, fluids or rotating shafts while maintaining electrical continuity
- Precious-metal multi-point brush contact for low friction and stable electrical connection
- Through-hole (bore) diameter: 8 mm (model DHK008-5)
- Gold-plated rings with gold-plated alloy brushes; supports mixed signal and power transmission
- Fully customizable (circuit count, current, voltage, housing material, lead length); no standard stock
Product Detail
- Series: DHK mini inner-hole (through-hole) slip rings
- Standard ID: 3–500 mm; OD: 10–800 mm (custom sizes available)
- Model DHK008-5: 8 mm bore for rotating electromechanical systems requiring a through passage
- Example configuration: 8 rings; typical per-ring rating examples: 2 A (configurable)
- Standard housing: aluminum alloy; optional engineering plastics or stainless steel
- Can be integrated with fiber-optic, liquid, or pneumatic rotary unions to form hybrid solutions
Typical Applications
- Winding machines and rotating drives
- Laser scanners and imaging systems
- In-pipe inspection cameras and borehole equipment
- Exhibition and display rotating mounts
- Vending and food dispensing machines
- CCD inspection systems and machine vision
- Automated assembly and rotary indexing machines
- Rotating LED lighting, labeling and marking equipment
- Laboratory instruments and biological testing devices
- Any application requiring 360° electrical/power/signal transmission through a central bore
Product Naming Description
- DH = electric slip ring series
- K = through-hole installation (inner bore)
- Numeric value indicates through-hole bore diameter (example: 008 = 8 mm)
- Suffix indicates total circuits (e.g., -5) and additional ID numbers may denote cable length, connector type or installation variant
- Rated current can be specified per circuit when heterogeneous circuits are used
DHK008-5 Through Bore Slip Ring Technical Parameters
Product grades:
General — Speed: 0–200 rpm — Life: 20 million revs
Industrial — Speed: 300–1000 rpm — Life: 60 million revs
Technical parameters:
- Number of rings: 8 (example)
- Working temperature: -40°C to +65°C
- Rated current options: 2 A, 5 A, 10 A, 15 A, 20 A (selectable)
- Working humidity: ≤70%
- Rated voltage: 0–240 VAC/VDC
- Protection level: IP54
- Insulation resistance: ≥1000 MΩ @ 500 VDC
- Insulation strength: 1500 VAC @ 50 Hz, 60 s, 2 mA
- Electrical contact material: precious metals (gold plated)
- Dynamic contact resistance change: ≤10 mΩ
- Shell material: aluminum alloy (options: engineering plastics, stainless steel)
- Lead wires: colored Teflon; standard length 500 mm ±20 mm
- Working speed: general 0–600 rpm; industrial up to 1000 rpm
- Customization: circuit count, current, voltage, housing material, and hybrid integration available
Technical specifications
- Model: DHK008-5
- Through-hole diameter: 8 mm
- Number of rings: 8 (example)
- Rated current options: 2–20 A per ring
- Rated voltage: 0–240 VAC/VDC
- Insulation resistance: ≥1000 MΩ @ 500 VDC
- Insulation strength: 1500 VAC @ 50 Hz, 60 s
- Contact material: gold-plated rings and gold-plated alloy brushes
- Dynamic resistance change: ≤10 mΩ
- Operating temperature: -40°C to +65°C
- Protection class: IP54
- Housing: aluminum alloy (custom options)
- Lead length: 500 mm ±20 mm
- Customization options: circuits, currents, voltages, housing material, hybrid fiber/liquid/pneumatic integration
