RS-422 slip ring DHK190-50

through-holefor wind turbinefor medical devices

Short Description

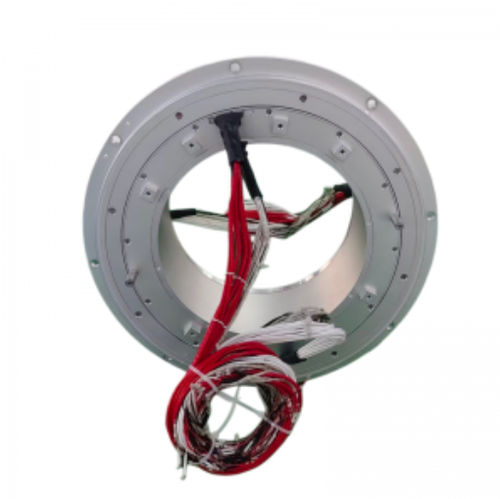

Ingiant DHK190-50 is a large-bore through-hole slip ring with a 190 mm inner diameter and 300 mm outer diameter, providing 50 circuits (8×20A/54V, 12×10A/54V and 30×RS422) for combined power and RS422 signal transmission in rotating platforms. Rated IP51 and operating from -40 °C to +65 °C, it is designed for demanding industrial, aerospace and defence applications.

Product Overview
Ingiant DHK190-50 integrates power and RS422 signal channels in a compact through-hole design that allows central shafts, cabling or pipelines to pass through the bore. The unit supports continuous rotation up to 100 rpm and features gold-on-gold contacts and an aluminum-alloy housing for stable electrical performance and reduced wear.

Key Specifications

• Bore Size: Ø190 mm
• Outer Diameter: Ø300 mm
• Total Circuits: 50 (8×20A/54V, 12×10A/54V, 30×RS422)
• Speed Range: 0–100 rpm
• Protection Class: IP51
• Dynamic Contact Resistance: ≤ 10 mΩ
• Insulation Resistance: ≥ 500 MΩ @ 500 VDC
• Operating Temperature: -40 °C to +65 °C
• Housing Material: Aluminum alloy
• Contact Material: Gold-on-gold

Core Advantages

• Large through-hole (Ø190 mm) for straightforward integration with central shafts, cable bundles or fluid/gas lines.
• Hybrid power and RS422 signal transmission supports simultaneous high-current power delivery and stable data communications.
• Military-grade contact materials and wide temperature range enable reliable operation in harsh environments.
• Low maintenance due to precision aluminum housing and advanced brush/contact technology, reducing downtime and service costs.

Typical Applications

• Aerospace & defence: radar systems, UAVs, satellite communications, vehicle-mounted platforms.
• Industrial automation: wind turbines, packaging machines, industrial robots, rotary tables.
• Special equipment: surveillance platforms, rotating medical devices, vehicle-mounted optoelectronic systems.

Technical Specifications

• Model: DHK190-50
• Bore (Inner Diameter): 190 mm
• Outer Diameter: 300 mm
• Circuits: 8×20A/54V, 12×10A/54V, 30×RS422
• Rated Speed: up to 100 rpm (continuous)
• Protection Rating: IP51
• Dynamic Contact Resistance: ≤ 10 mΩ
• Insulation Resistance: ≥ 500 MΩ at 500 VDC
• Operating Temperature Range: -40 °C to +65 °C
• Housing Material: Aluminum alloy
• Contact Material: Gold-on-gold
