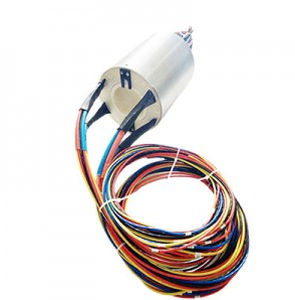

Electric electrical slip ring DHK070-11
Ethernetgigabit Ethernetserial

electric electrical slip ring
electric electrical slip ring
electric electrical slip ring
electric electrical slip ring
Add to favorites
Compare this product


Characteristics

Type
electric, Ethernet, gigabit Ethernet, serial, RS-422
Construction
hollow-shaft
Applications
for robotics, for sensors, packaging machine, for measurement instruments, for wrapping machines, for medical devices, video transmission, for robots, military
Material
plastic, stainless steel, aluminum
Other characteristics
compact, low-torque, fiber brush, conductive, custom, with gold contacts, multi-channel, high-current, large-diameter
Voltage

Min.: 0 V

Max.: 480 V

440 V

Primary current

50 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 600 rpm
(3,770 rad.min-1)

Number of channels

11 unit

Description

Characteristics Item No.: DHK070-11 Inner diameter: 70mm Outer diameter: 145mm Weight: 3.55kg Construction: through hole, shaft install Electric contact material: Gold-Gold, Fiber brush – Ring Working speed: 0~600RPM Current: 50A per channel Voltage: 0~480V, can be customized Number of Channels: 11, can be customized Connector: lead wires and terminals Customized installation method, transmit power & signal for industrial equipment Description: Ingiant is a professional customized slip ring manufacturer, with experienced engineer, QC, and workers team. Slip ring is designed to use to transmit power, signal or data, pneumatically or hydraulically from a stationary to a rotating platform. It also can be defined to something that goes around an axle like a collar that has 2 ports on it, the inside ports rotates independent of the outside one, so that it is possible to attach a motor or sensor on a rotating platform without the wire winding. Features: We can make IP51~IP65 slip ring for ships, harbor equipment, test equipment and some application which has water or moisture environment, to transmit precision signal, electric power, data etc. Customized Signal type: Solenoid valve, PLC, RS485/232/422, Thermocouple, Sensor, Pulse signal, Encoder, Servo system, CANBUS, Profibus, CC-Link, USB2.0, Ethernet, Gigabit, Video, Voice etc. Advantage: Compact size, high precision, low maintenance, low electric noise, low torque, long lifespan.
