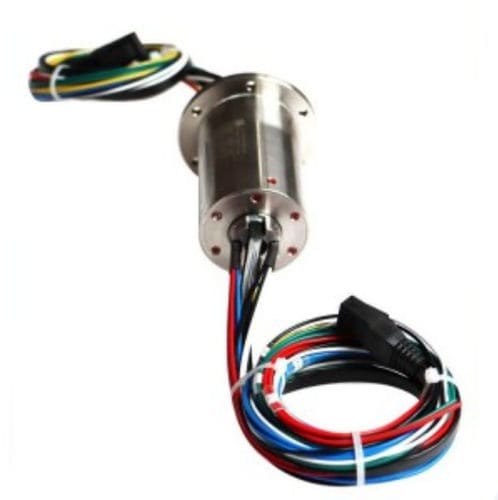

Electric slip ring DHK010-16-002

through-borethrough-holefor industrial applications

Short description

• Compact through-hole slip ring for continuous 360° transmission of power and mixed signals.
• Model DHK010-16-002 with 10 mm inner bore and flange mounting option.
• Precious-metal multi-point brush contact; gold-plated rings and gold-plated alloy brushes.
• Support for mixed signal and power; configurable circuit count, current and voltage.

Series / Overview
The DHK mini inner-hole series supports custom and standard IDs from 3 to 500 mm and ODs 10 to 800 mm. The DHK010-16-002 combines a 10 mm through bore, mixed-signal/power transmission capability, a standard 2 A per ring option and up to 16 rings. Housing: aluminum alloy (engineering plastic or stainless steel optional). Designed for stable power and signal transmission in electromechanical systems requiring continuous rotation. Can be integrated with gas/liquid rotary joints or fiber-optic slip rings to form hybrid multifunctional solutions.

Typical Applications

• Winding machines
• Laser scanners
• In-pipe inspection cameras
• Exhibition and display equipment
• Vending and food-service machines
• CCD visual inspection equipment
• Intelligent vision systems
• Automated assembly machines
• Rotating LED lighting
• Labeling machines
• Laboratory equipment
• Biological testing instruments
• Any device requiring continuous 360° rotation with power and signal transmission

Product naming description

• Product type: DH — electric slip ring
• Installation method: K — through-hole
• Through-bore diameter: 10 mm
• Total circuits: up to 16
• Rated current per ring: standard 2 A (other options: 2 A, 5 A, 10 A, 15 A, 20 A)
• Identification suffix: -XXX distinguishes specifications of the same model

Product grade table
General — Working speed: 0–200 rpm — Life: 20 million revolutions
Industrial — Working speed: 300–1000 rpm — Life: 60 million revolutions

Technical parameters (summary)

• Number of rings: up to 16
• Rated current options: 2 A, 5 A, 10 A, 15 A, 20 A per ring
• Rated voltage: 0–240 VAC/VDC
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Dielectric strength: 1500 VAC @ 50 Hz, 60 s (2 mA)
• Dynamic contact resistance change: < 10 mΩ
• Working speed: 0–600 rpm (up to 1000 rpm for industrial grade)
• Operating temperature: -40 °C to +65 °C
• Operating humidity: ≤70%
• Protection level: IP54
• Housing material: aluminum alloy (engineering plastic or stainless steel optional)
• Electrical contact material: precious metals (gold-plated rings and gold-plated alloy brushes)
• Lead wires: colored Teflon, length 500 mm ±20 mm
