Solid-shaft fiber optic rotary joint HS-1F-002medicalfor roboticsvideo surveillance
Add to favorites
Compare this product
Characteristics
- Construction
- solid-shaft
- Applications
- medical, for robotics, video surveillance, for radar antennas, subsea, industrial
- Other characteristics
- IP54, shaft-mounted, contactless
- Number of channels
1 unit
Description
Short description
Typical applications
Product naming description
Technical specifications
Options & customization

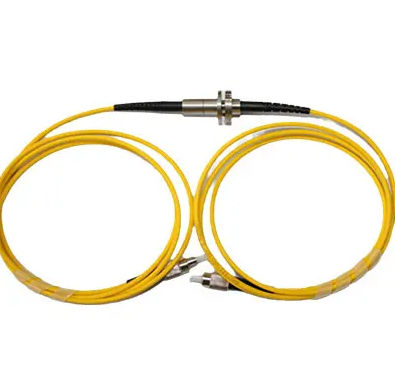

- Ingiant HS-1F-002 is a fiber optic rotary joint for single-mode or multi-mode systems, enabling continuous bidirectional optical transmission.
- Contactless design with fully enclosed structure for high-speed rotation and long operational life.
- Standard fiber length on the unit: 1.1 m (pigtail options available).
Typical applications
- Industrial and high-end robotics
- High-precision material handling and conveying systems
- Rotating turrets and weapon stations on military vehicles
- Remote-control systems, radar and antenna platforms
- Fiber optic sensors, high-speed video turntables and signal distribution platforms
- Medical imaging equipment and video surveillance systems
- Submarine operation systems and emergency lighting equipment
- Exhibition, display devices and other precision rotating platforms
Product naming description
- Product type: HS — solid shaft slip ring
- Channels: numeric + F (number of optical channels, e.g., 1F, 3F)
- Fiber type: 9/125 (single-mode), 50/125 or 62.5/125 (multi-mode)
- Working wavelengths: 850 nm, 1310 nm, 1550 nm
- Pigtail: standard 1.2 m (S = customer specified); armor encapsulation optional; connector forms: FC / ST / SC / LC / N = no connector; end-face: PC (flat), APC (angled)
- Example model: HS-3F-50/125-S-Φ2.0K-FC/PC
Technical specifications
- Number of rings: 1 ring (custom available)
- Bandwidth: ±50 nm
- Wavelength range: 850 ~ 1550 nm
- Maximum insertion loss: ≤ 1.5 dB
- Insertion loss fluctuation: ≤ 0.5 dB
- Return loss: ≥ 50 dB
- Power handling: ≤ 23 dBm
- Standard fiber type: 9/125 (single-mode)
- Tensile strength (withstand tension): ≤ 12 N
- Maximum rotation speed: 2000 rpm
- Estimated lifetime: ≥ 200 million revolutions
- Operating temperature: -20 ~ +60 °C
- Storage temperature: -45 ~ +85 °C
- Weight: approx. 15 g
- Protection rating: IP54 (IP65, IP67 optional)
- Vibration and shock standard: GBJ150
Options & customization
- Custom channel counts, fiber types and connector terminations available on request.
- Sealing level (IP65/IP67), pigtail length and armored encapsulation can be specified for environmental or mechanical requirements.
- Technical drawings (2D/3D) and specification sheets available for integration and OEM projects.
