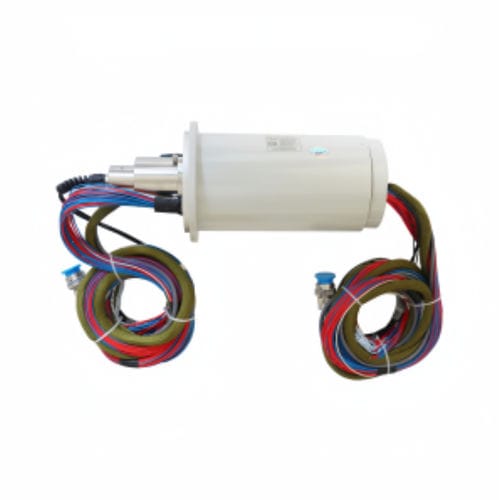

Hybrid slip ring DHS130-56-5F

fiber opticelectro-opticalcapsule

Short description
DHS130 series 5-channel fiber optic/photoelectric slip ring

Overview
The DHS130 series of 5-input and 5-output photoelectric combination slip rings transmits 5 optical fibers and 1 to 56 electrical channels simultaneously. It is an integrated conductive slip ring with an all-aluminum alloy structure. Electrical circuits support signal (2A), 10A, 50A and voltages up to 600VAC/VDC.

Application and functionality
Photoelectric slip rings provide continuous 360° rotation while maintaining uninterrupted power and fiber optic data transmission. They use optical fibers for high-capacity data transfer between rotating and stationary components. Suitable for unlimited continuous or intermittent rotation, they improve mechanical integration and protect fiber optics from damage caused by joint rotation.

Our advantage

• Product features: IP-rated protection; suitable for extreme environments; explosion-proof variants available; low maintenance requirements; integration of high-frequency channels; standard and custom designs; supports high-definition video transmission at high frame rates; 360° continuous rotation; integration with rotary joints and Ethernet; compatible with fully gimbaled systems; twist-capsule integration; designed for long service life.
• Company capabilities: OEM and ODM services; professional R&D and production teams; factory facilities with production and R&D areas to meet varied customer requirements.
• After-sales & technical support: After-sales and technical support provided; long-term qualified supplier for multiple military units, research institutes and companies.

Standard product outline drawing
Model example: DHS100-18-4F (illustrative outline drawing provided for reference)

Characteristics / Technical specifications

• Model designation: DHS130-56-5F (representative configuration)
• Series: DHS130 series
• Number of circuits: 56
• Working temperature: -40°C ~ +65°C
• Rated current: customizable (supports various currents including signal 2A, 10A, 50A)
• Working humidity: ≤70%
• Rated voltage: 0 ~ 240 VAC/VDC
• Protection level: IP54
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Insulation strength: 1500 VAC @ 50 Hz, 60 s, 2 mA
• Housing material: Aluminum alloy
• Electrical contact material: Precious metal
• Dynamic resistance variation: ≤10 mΩ (typical)
• Lead wire specification: Colored Teflon insulated & tinned stranded flexible wire
• Rotating speed: 0 ~ 600 rpm
• Lead wire length: 500 mm + 20 mm
