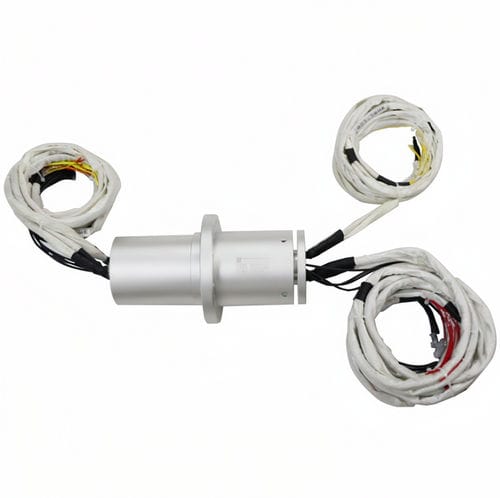

Hybrid fiber optic rotary joint DHS095-27-4F

for industrial applicationsaluminumhybrid

Short description
Hybrid slip ring combining 4 optical fiber channels (single-mode/multi-mode) with up to 27 electrical/signal circuits for 360-degree continuous or intermittent rotation. Designed to transmit high-capacity optical data and power/signals between fixed and rotating parts while minimizing mechanical stress on fibers and simplifying system integration.

Main parameters

• Model: DHS095-27-4F
• Number of circuits: 27
• Optical channels: 4 (single-mode / multi-mode supported)
• Working temperature: -40°C to +65°C
• Working humidity: ≤70%
• Rated voltage: 0–240 VAC/VDC
• Rated current: customizable
• Protection level: IP54
• Insulation resistance: ≥1000 MΩ @500 VDC
• Insulation strength: 1500 VAC @50Hz, 60 s, leakage 2 mA
• Housing material: Aluminum alloy
• Electrical contact material: precious metal
• Dynamic resistance variation: ≤10MΩ
• Lead wire: colored Teflon insulated & tinned stranded flexible wire, length 500 mm + 20 mm
• Rotational speed: 0–600 rpm

Features

• Transmits single-mode or multi-mode optical fiber signals alongside multiple electrical channels
• Optical connector options: FC, SC, ST, SMA or LC (PC and APC); supports hybrid transmission of power, control and low-power signals
• Can be combined with traditional electric slip rings to form photoelectric hybrid bus rings for power and high-speed data transmission
• Optical transmission without electrical contact on fiber paths; no friction on fiber cores, long service life (up to 100 million revolutions for some cores)
• Reliable, no leakage and immune to electromagnetic interference, suitable for long-distance optical transmission

Product drawing
Product drawings and images are available for the DHS095 series for installation and integration reference (illustrative).

Technical specifications

• Model: DHS095-27-4F (DHS095 series)
• Optical channels: 4 (single-mode / multi-mode)
• Electrical/signal channels: up to 27 circuits
• Operating temperature: -40°C to +65°C
• Rated voltage: 0–240 VAC/VDC
• Protection rating: IP54
• Insulation resistance: ≥1000 MΩ @500 VDC
• Insulation strength: 1500 VAC @50Hz for 60 s, leakage 2 mA
• Contact material: precious metal
• Lead wire: colored Teflon insulated & tinned stranded flexible wire, length 500 mm + 20 mm
• Rotational speed: 0–600 rpm
