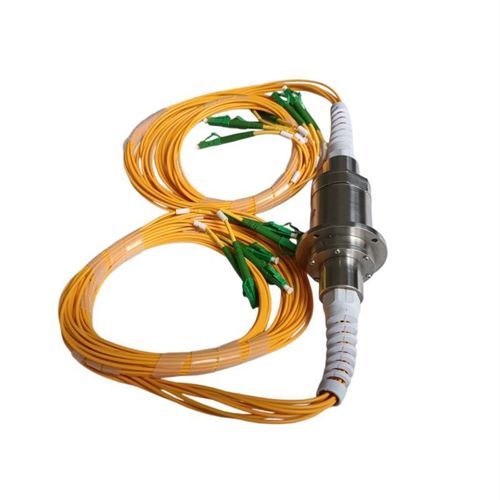

Fiber optic rotary joint for marine applications GHS025-NF-01

for the aeronautical industryfor industrial applicationsfor wind turbine

Product Overview
The 8-Channel Fiber Optic Slip Ring (Fiber Optic Rotary Joint / FORJ) is a precision-engineered rotary transmission device designed for continuous 360° rotation while maintaining stable, low-loss optical signal transmission. It integrates up to 8 independent fiber optic channels in a compact housing, enabling simultaneous multi-channel data, video or sensor signal transmission without cable twisting. This model features single-mode fiber (9/125 µm), LC/PC connectors and armored 2.0 mm fiber pigtails for reliable performance in demanding industrial and field environments.

Key Features

• 8 Independent Optical Channels – Supports multi-signal transmission (data, video, control) in one compact unit
• Low Insertion Loss – ≤ 3 dB per channel, with stable variation ≤ ±0.20 dB
• High Durability – Rated for > 100 million revolutions service life
• IP65 Protection Rating – Dust-tight and protected against water jets, suitable for outdoor and harsh industrial use
• Wide Operating Temperature – -40°C to +85°C for extreme environments
• Compact Design – Space-saving footprint for integration into existing rotary systems
• Customizable Options – Channel count (2–10), connector type (FC/ST/SC/LC), fiber type (single-mode / multi-mode), cable length and jacket material available

Technical Specifications
Number of Channels: 8 (customizable 2–10)
Wavelength Range: 1310 / 1550 nm
Insertion Loss: ≤ 3 dB
Return Loss: ≥ 45 dB
Insertion Loss Variation: ≤ ±0.20 dB
Fiber Type: Single-mode 9/125 µm
Connector Type: LC/PC (others available)
Fiber Pigtail: 2.0 mm armored, 1 m standard length
Operating Speed: 0–300 rpm (customizable)
Operating Temperature: -40°C ~ +85°C
Storage Temperature: -50°C ~ +90°C
Protection Rating: IP65
Service Life: > 100 million revolutions
Housing Material: Stainless steel / Aluminum alloy
RoHS Compliant: Yes

Applications

• Radar Systems – Rotating antenna platforms requiring stable multi-channel signal transmission
• Remote Sensing & Surveillance – Pan-tilt cameras, thermal imaging systems, UAV ground stations
• Industrial Automation – Rotary indexing tables, packaging machinery, robotic arms
• Medical Equipment – CT scanners, surgical robots, diagnostic imaging systems
• Oil & Gas / Marine – Subsea ROV tether management systems, offshore drilling equipment
• Wind Energy – Pitch control systems in wind turbines
• Defense & Aerospace – Turret systems, missile launchers, airborne pod systems

Model / Series
Model / Series: GHS025-NF-01 Series, 8-channel standard
Fiber: Single-mode 9/125 µm (multi-mode optional)
Connectors: LC/PC standard (FC/ST/SC available)
Insertion Loss: ≤ 3 dB, variation ≤ ±0.20 dB
Return Loss: ≥ 45 dB
Protection: IP65
Operating Temperature: -40°C to +85°C
Speed: 0–300 rpm (customizable)
Service Life: > 100 million revolutions
Housing: Stainless steel or aluminum alloy
