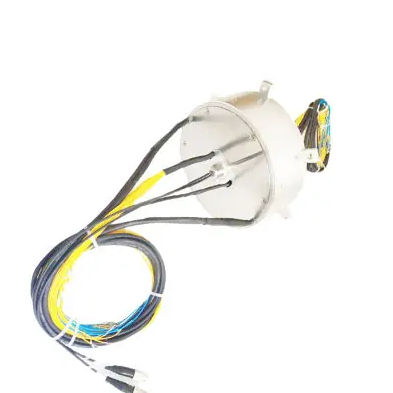

Electric slip ring DHS140-36-2Ffiber opticvideo surveillancealuminum alloy
Add to favorites
Compare this product
Characteristics
- Type
- electric, fiber optic
- Applications
- video surveillance
- Material
- aluminum alloy
- Other characteristics
- hybrid
- Voltage
Min.: 0 V
Max.: 440 V
- Primary current
1 A, 15 A, 30 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 100 rpm
(628 rad.min-1)- Number of channels
36 unit
Description
Ingiant DHS140-36-2F series fiber electrical slip ring provides 36 channel rated current 15A-3 rings,30A- 2rings ,1A- 31 rings
Hybrid transmission of optical fiber and electrical signals
Small size and light weight
DHS140-36-2F Series Fiber Optic-Electrical Slip Ring Description
Ingiant DHS140-36-2F series fiber electrical hybrid slip ring outer diameter 140mm ,36 power signal and 2 fiber optic signal ,rated current 15A -3 rings, 30A-2 rings,1A-31 rings ,housing material aluminum alloy ,working speed 0-100 rpm ,small size and light weight.
Typical Applications
Remote control systems, transmission and control of digital and analog signals
Radar, antenna systems
Video surveillance systems
