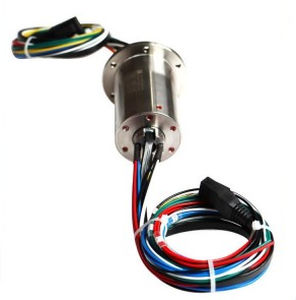

Electric motor slip ring

industrialfor marine applicationsmetal

Cable Winch Collector Ring Mechanical Equipment Electric Motor Ship Slip Ring Carbon brush slip ring is a 360-degree contact rotation conduction between carbon brush and slip ring. It can be used in any electromechanical system that requires continuous rotation and the transmission of power and signals from fixed position to rotating position. The slip ring can improve the system performance and simplify the system structure. Characteristic: - Good conductivity, long service life; - Brush running, good sliding contact, no overheating, no noise, low loss; - In the process of operation, the surface of collector ring is uniform, moderate and stable; - The pressure of each carbon brush is uniform and stable, and the structure ensures the stability of the carbon brush and smooth contact; - When the slip ring works, it can transmit signal and current stably. Technical Parameter Mechanical Technique Indicators - Working Life: 10 million RPM reference value (Depending on work) - Rated Speed: 150 rpm - Working Temperature: -30℃~80℃ - Working Humidity: 0~85%RH - Contact Material: Metal - Shell Material: Engineering Plastic - Moving Torque: 0.05N.m+0.02N.m/6 way - Protection Level: IP51 Electrical Technique Indicators - Rated Voltage: 0~240VAC/VDC - Insulation Resistance: ≥300MΩ/300VDC - Wire Specification: Reference Selection Table - Wire Length: Standard Length 300mm (customizable) - Insulation Strength: 300VAC@50Hz, 60S - Dynamic Resistance Variation: <0.01Ω
