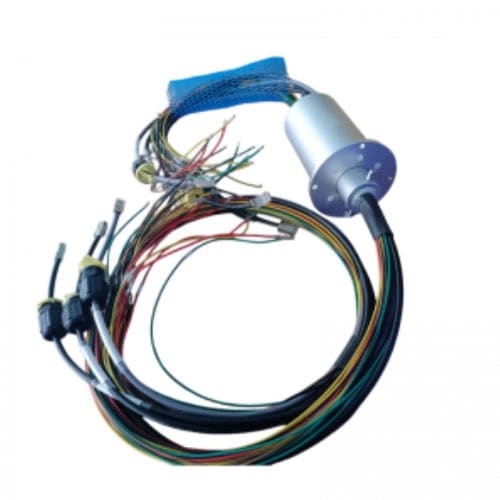

Ethernet slip ring DHS078-43-006

gigabit Ethernet1 Gbps100 Mbps

Product Overview
The DHS078-43-006 is a PROFINET-optimized Ethernet slip ring with a 78 mm outer diameter, designed to combine industrial power, control signals and high-speed Ethernet in rotating systems. It provides 43 dedicated circuits for PN communication and supports both Fast Ethernet (100 Mbps) and Gigabit Ethernet (1000 Mbps) for reliable data transfer in automation environments.

Key Advantages for PROFINET Applications

• PN Communication Optimized: Shielded, dedicated circuits for PROFINET to minimize packet loss and latency in industrial networks.
• Dual Ethernet Support: Supports 100 Mbps and 1000 Mbps PN Ethernet, compatible with common PLC and HMI equipment.
• Ultra-Stable Signal: Gold-gold contacts and <10 mΩ dynamic contact resistance to reduce interference and ensure protocol integrity.
• Industrial Grade Durability: IP51 protection rating and aluminum alloy housing for dust and vibration resistance in factory environments.
• Plug-and-Play Integration: Pre-wired RJ45 connectors for straightforward connection to existing PROFINET infrastructure.

Typical Applications

• PROFINET-based industrial robots and manipulators
• Automated rotary production lines with PN communication
• CNC machines with rotating tables
• Intelligent conveyor systems and rotary indexers
• Industrial PTZ cameras requiring PN data transmission

Technical Specifications

• Model designation: DHS078-43-006
• Series: DHS078 series
• Outer diameter (OD): 78 mm
• Number of circuits: 43 circuits optimized for PN communication
• Ethernet support: Fast Ethernet 100 Mbps and Gigabit Ethernet 1000 Mbps
• Communication protocol: PROFINET (PN)
• Contact material: Gold-gold contacts
• Dynamic contact resistance: <10 mΩ (dynamic)
• Protection rating: IP51
• Housing: Aluminum alloy
• Connectors: Pre-wired RJ45 connectors
• Design focus: Industrial-grade stability, low latency and plug-and-play integration for rotating automation equipment
