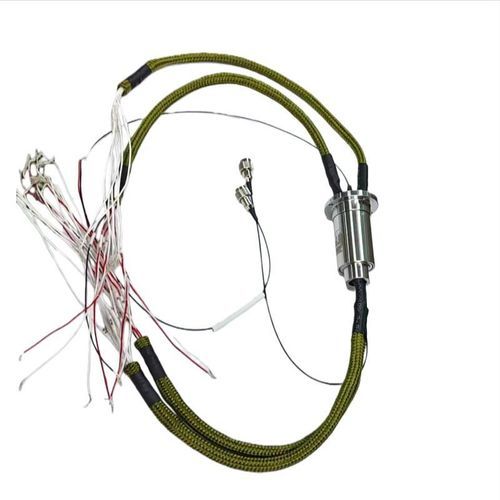

Electro-optical fiber optic rotary joint DHS025-19-1F

metalstainless steelcompact

Product Overview
This integrated electrical and fiber optic slip ring assembly, model DHS025-19-1F, is a high-performance rotary interface designed for reliable power, signal, and optical data transmission in demanding 360° continuous rotation applications. It combines 19 electrical channels and 1 single-mode fiber optic channel in a compact, durable stainless steel housing.

Core Advantages

• Integrated Design: Combines high-current electrical paths with a low-loss optical channel in one compact unit, simplifying system design.
• High Reliability: Features precious metal contacts, robust stainless steel construction, and a long service life (≥3M revolutions) for mission-critical applications.
• Stable Performance: Low and consistent insertion loss for the optical channel, minimal contact resistance variation, and excellent insulation ensure signal integrity.
• Built for Harsh Environments: Operates reliably across a wide temperature range and is protected against dust and light moisture (IP51).

This slip ring assembly is the optimal solution for advanced rotary systems where performance, durability, and data fidelity cannot be compromised.

Main Technical Parameters
Number of Circuits: 19
Rated Current:

• Power: 8 circuits at 3A + 1 shielded circuit; 28VDC
• Signal: 9 circuits at 9A + 1 shielded circuit

Rated Voltage: 0–28VDC
Insulation Strength: 400VAC @ 50Hz, withstand for 60s (no breakdown, no flashover)
Insulation Resistance: ≥500 MΩ @ 500VDC
Contact Resistance: ≤100 mΩ (excluding leads)
Dynamic Contact Resistance Variation: ≤10 mΩ
Rotational Speed Range: ≥120 rpm
Service Life: ≥3,000,000 revolutions
Operating Temperature: -40°C to +60°C
Protection Rating: IP51
Rotating Torque: ≤20 mN·m (at room temperature)
Structural Material: Stainless Steel
Electrical Contact Material: Precious Metal
Product Weight: ≤220g (excluding leads)
Lead Wire Specification: Refer to wiring diagram
Sealing Process for Threaded Holes and Wire Exit Roots: Potting with sealant

Fiber Optic Slip Ring Technical Parameters

• Number of Channels: 1
• Operating Wavelength: 1270nm / 1330nm
• Fiber Type: Single-Mode Fiber
• Connector Type: FC/PC
• Insertion Loss: <2dB
• Insertion Loss Variation: <±0.5dB
• Packaging Diameter: Ø 0.9” (armored)

Key Features

• Electro-optical electrical rotary joint
• Compact and integrated design for advanced rotary systems
• Suitable for harsh environments and mission-critical applications

Technical Specifications

• Model: DHS025-19-1F
• Number of electrical circuits: 19
• Number of fiber optic channels: 1 (Single-Mode Fiber)
• Operating temperature: -40°C to +60°C
• Protection rating: IP51
• Material: Stainless steel housing, precious metal contacts
• Service life: ≥3,000,000 revolutions
• Rotational speed: ≥120 rpm
• Weight: ≤220g (excluding leads)
