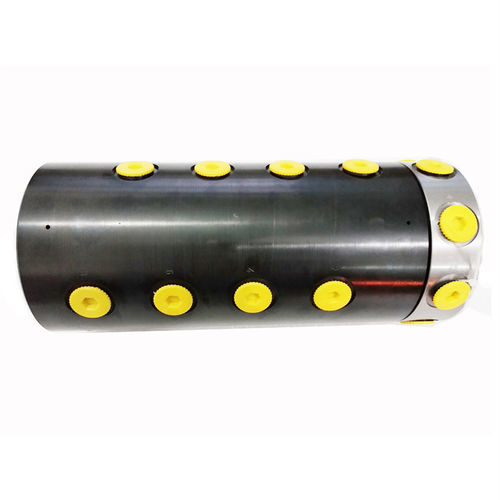

Water rotary union DHS145-8Q

for oilfor vacuumfor chemicals

Short Description
Ingiant Pneumatic Rotary Joint (Rotary Union) DHS145-8Q is engineered to transmit pneumatic media while allowing 360° continuous rotation. Designed for integration in pneumatic systems, it can be customized for different passage counts, port sizes and integrated slip-ring options for electrical/power transmission.

Specification
DHS145-8Q
Technical parameters:

• Passages: configurable per customer requirements
• Thread: G1/8"
• Flow hole size: Φ6
• Working medium: compressed air (other gases/fluids selectable)
• Working pressure: 1.1 Mpa
• Working speed: ≤200 rpm
• Working temperature: -30℃ ~ +80℃

Application Field

• Mixers (open/internal), calenders, cooling rolls
• Pneumatic equipment, film extruders, film blowing machines, molding machines
• Pulp & paper, steel, corrugated board, textile, printing & dyeing, rubber & plastics, chemical industry
• Capping machines, construction machinery, material handling, lifting equipment, cranes, fire trucks
• Control systems, robotics, ROVs, excavators, machine tools and automation systems

Product Advantage

• 360° continuous rotation capability for uninterrupted pneumatic supply
• Transmits inert gases and fluids: compressed air, steam, vacuum, N2, H2, water, hot oil, hydraulic oil, corrosive media (as customized)
• Sealing surfaces and rings made from selected materials for wear and corrosion resistance, long service life and minimal leakage
• Optional integrated slip rings to transmit power and control signals
• High customizability: number of pneumatic/hydraulic passages (e.g. 1, 2, 4, 6, 8, 12, 16, 24), electrical/power/signal channels (1–300), port sizes and tube diameters
• Standard port options: G1/8", G3/8", M5, G1/4", G1/2"; supports tube sizes 4mm, 6mm, 8mm, 10mm, 12mm, 15mm, etc.

Company & Service Advantages

• Strong R&D capabilities with advanced testing technology and international-level expertise
• Experience supplying high-precision slip rings and rotary unions for aerospace, defense, wind power and industrial automation sectors
• Offers product customization, integrated technical support and after-sales service

Technical specifications

• Model: DHS145-8Q
• Passages: configurable per customer requirements (customizable)
• Thread: G1/8"
• Flow hole size: Φ6
• Working medium: compressed air (other gases/fluids supported by customization)
• Working pressure: 1.1 Mpa
• Working speed: ≤200 rpm
• Working temperature range: -30℃ to +80℃
• Options: integrated slip ring for power/signals; customizable port sizes, number of pneumatic/hydraulic passages and electrical channels
