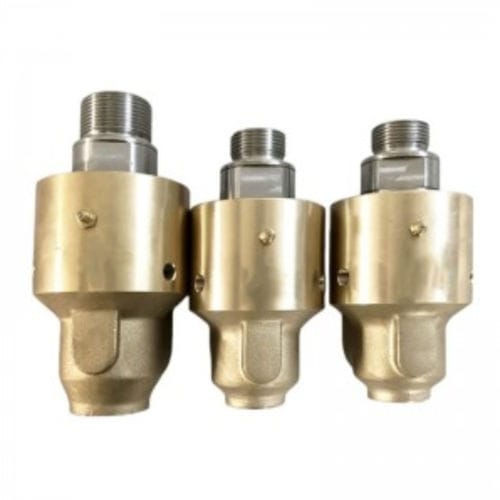

Steam rotary union Deublin 55 series

for gasfor waterfor oil

Short Description

• General type: 55/57 Series rotary joints, nominal sizes DN10-50

Features

• Single-passage and dual-passage designs
• Self-supporting rotator with radial housing connection
• Balanced mechanical seal for controlled leakage
• Three leakage ports (standard)
• Forged brass housing with stainless steel rotor

Special Options

• Threaded-connection leakage port
• Splash-proof bearing
• Nickel-plated and/or low-torque variants

Product Details
Connection type: Threaded connection
Application scope: Water / Oil / Gas
Applicable hose/pipe: Threaded pipe
Working fluid: Water, Oil, Steam
Notes: Dual-passage units use a stationary supply pipe; single-passage units are fitted with pipe plugs instead of elbows

Technical specifications

• Series / Model: Deublin 55/57 Series
• Nominal sizes: DN10-50
• Passage options: Single-passage or Dual-passage
• Design: Self-supporting rotator with radial housing connection
• Sealing: Balanced mechanical seal
• Leakage: Three leakage ports (standard)
• Housing material: Forged brass
• Rotor material: Stainless steel
• Connection type: Threaded connection (standard)
• Applicable media: Water, Oil, Steam (suitable for water/oil/gas applications)
• Hose / pipe: Threaded pipe
• Optional features: Threaded-connection leakage port, Splash-proof bearing, Nickel-plated or low-torque variants
• Notes: Dual-passage units use a stationary supply pipe; single-passage units use pipe plugs in place of elbows
