Water rotary union

for oilfor steamfor thermal oil

Short Description:

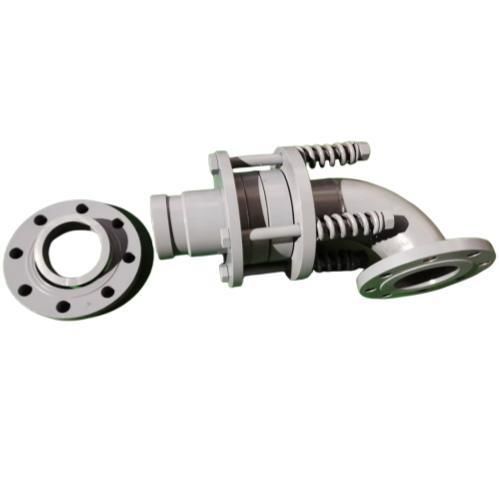

This spring-loaded flange rotary union is a fluid transfer component for high-temperature, high-pressure rotating equipment. It features a 90° elbow structure and a spring-loaded self-compensating sealing system to ensure stable, leak-free transfer of steam, thermal oil, water, hydraulic oil and similar media.

Reliable Sealing & Long Service Life
Spring-loaded self-compensating sealing automatically offsets seal wear and maintains consistent sealing pressure, extending operational life.
Wear-resistant seal materials are selected for high-speed rotation and continuous duty, reducing maintenance intervals.
Bidirectional sealing prevents medium leakage under varying flow directions and pressure conditions.

High Temperature & High Pressure Adaptability
Operates at temperatures up to 300°C and is compatible with steam and thermal oil.
Pressure capability up to 2.5 MPa, suitable for steelworks, paper mills, printing and dyeing facilities and similar industrial sites.
90° elbow layout allows compact installation where space or piping orientation is constrained.

Sturdy Structure & Easy Installation
Flange connection provides robust fixation and straightforward mounting/disassembly.
Available in carbon steel or stainless steel to match corrosion and environmental requirements.
Modular construction enables quick replacement of wearing parts to minimize downtime.

Wide Application Scenarios

• Pulp and paper: paper machines, calenders, coating units
• Printing & dyeing: dryers, setting machines
• Rubber industry: vulcanizing presses, calenders
• Steel industry: continuous casters, rolling mills, cooling systems
• Chemical industry: reactors, heat exchangers
• Other rotating equipment requiring high-temperature fluid transfer

Technical Advantages
Ultra-low friction torque for smooth rotation and no jamming.
Good anti-vibration behavior for stable operation under dynamic conditions.
All units are factory pressure-tested to ensure leak-free performance.
Customizable: flange size, connection type, material and sealing configuration available on request.

Technical specifications

• Sealing structure: spring-loaded self-compensating sealing
• Sealing direction: bidirectional sealing
• Temperature range: up to 300°C
• Pressure rating: up to 2.5 MPa
• Structure: 90° elbow for compact installation
• Connection: flange connection
• Materials: carbon steel or stainless steel options
• Maintenance: modular design for easy replacement of wearing parts
• Testing: 100% factory pressure test
• Customization: flange size, connection mode, material, sealing structure
