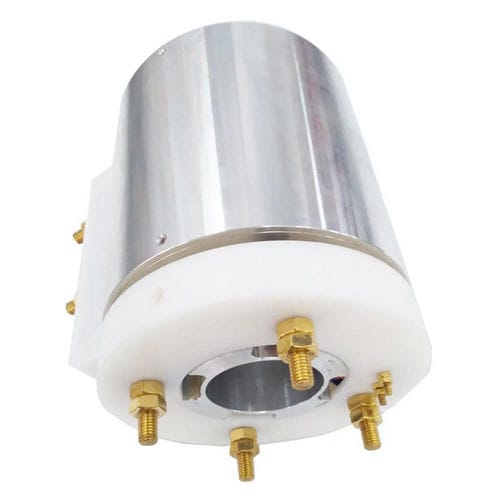

Ethernet slip ring DHK065-6PROFIBUSCAN busserial
Add to favorites
Compare this product
Characteristics
- Type
- RS-422, Ethernet, USB, PROFIBUS, CAN bus, gigabit Ethernet, serial, CC-Link, RS-485
- Construction
- through-bore
- Applications
- industrial
- Material
- gold
- Other characteristics
- compact, with gold contacts, IP65, low-torque, multi-channel, low-maintenance, high-current
- Voltage
Min.: 0 V
Max.: 440 V
- Primary current
Min.: 0 A
Max.: 200 A
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 300 rpm
(1,885 rad.min-1)- Number of channels
6 unit
Description
Characteristics
Description
Ingiant is a professional customized slip ring manufacturer with an experienced engineering, QC and production team. The slip ring transfers power, signals or data from a stationary part to a rotating platform. It allows motors, sensors or other devices to be mounted on rotating structures without wire winding or interruption.
Features
Customized Signal type
Advantage
Technical specifications
- Item No.: DHK065-6
- Construction: Through bore, shaft connected
- Electric contact material: Gold-Gold, Fiber brush – Ring
- Working speed: 0~300RPM
- Current: 0~200A
- Voltage: 0~440V
- Number of Channels: 6
- Connector: Terminal
- Application: Transmit high current for automatic equipment
- Ingress protection: IP51–IP65 (optional)
Description
Ingiant is a professional customized slip ring manufacturer with an experienced engineering, QC and production team. The slip ring transfers power, signals or data from a stationary part to a rotating platform. It allows motors, sensors or other devices to be mounted on rotating structures without wire winding or interruption.
Features
- IP51~IP65 protection options for marine, port, test rigs and other moisture-prone environments
- Capable of transmitting precision signals, electric power and data
Customized Signal type
- Solenoid valve
- PLC
- RS485/232/422
- Thermocouple
- Sensor
- Pulse signal
- Encoder
- Servo system
- CANBUS
- Profibus
- CC-Link
- USB2.0
- Ethernet
- Gigabit
- Video
- Voice
Advantage
- Compact size
- High precision
- Low maintenance
- Low electric noise
- Low torque
- Long lifespan
Technical specifications
- Item No.: DHK065-6
- Construction: Through bore, shaft connected
- Electric contact material: Gold-Gold, Fiber brush – Ring
- Working speed: 0~300RPM
- Current: 0~200A
- Voltage: 0~440V
- Number of Channels: 6
- Connector: Terminal
- Application: Transmit high current for automatic equipment
- Ingress protection: IP51–IP65 (optional)
