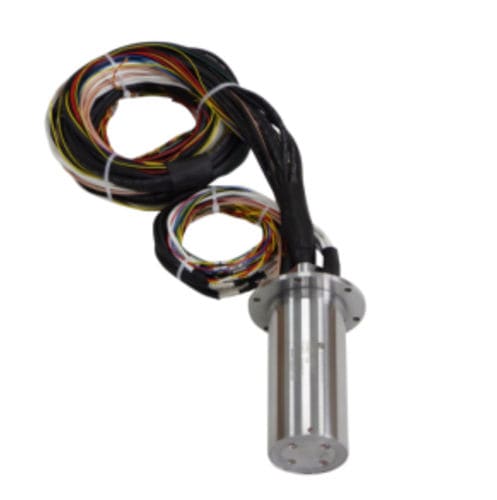

Industrial slip ring DHS052-50

aluminumIP54

Short Description
Special customized slip rings include hollow slip rings, through-hole slip rings, winch slip rings, flexible ring contacts and special rotary connectors, etc. We can provide various high-precision conductive slip rings and technical support. Mature and complete solutions and reliable quality meet customer needs.

Product Detail
DHS052-50
The main parameters
Number of circuits: 50
Working temperature: -40°C ~ +65°C
Rated current: can be customized
Working humidity: ≤70%
Rated voltage: 0~240 VAC/VDC
Protection level: IP54
Insulation resistance: ≥1000MΩ @500VDC
Housing material: Aluminum Alloy
Insulation strength: 1500 VAC@50Hz, 60s, 2mA
Electrical contact material: Precious metal
Dynamic resistance variation: ≤10MΩ
Lead wire specification: Colored Teflon insulated & tinned stranded flexible wire
Rotating speed: 0~600rpm
Lead wire length: 500mm + 20mm

Product drawing
Product drawing is provided on the page (image).

Our advantage

• Product advantage: The various Ingiant slip ring series are optimised for a wide range of applications. We support customers with tailor-made solutions. All products can be individually adapted to the applications to offer added value.
• Company advantage: Owns complete mechanical processing equipment including a CNC processing center, with strict inspection and testing standards which can meet national military GJB standard and quality management system; owns multiple technical patents for slip rings and rotary joints; experienced workshop staff to guarantee product quality.
• Customised advantage: Different Ingiant slip ring series are optimised for a wide range of applications and can be individually adapted to customer requirements.

Caractéristiques / spécifications techniques

• Model: DHS052-50
• Number of circuits: 50
• Working temperature: -40°C to +65°C
• Rated current: customizable
• Working humidity: ≤70%
• Rated voltage: 0–240 VAC/VDC
• Protection level: IP54
• Insulation resistance: ≥1000 MΩ @ 500 VDC
• Housing material: Aluminum alloy
• Insulation strength: 1500 VAC @ 50Hz, 60s, 2mA
• Electrical contact material: Precious metal
• Dynamic resistance variation: ≤10 MΩ
• Lead wire: Colored Teflon insulated & tinned stranded flexible wire
• Rotating speed: 0–600 rpm
• Lead wire length: 500 mm + 20 mm
