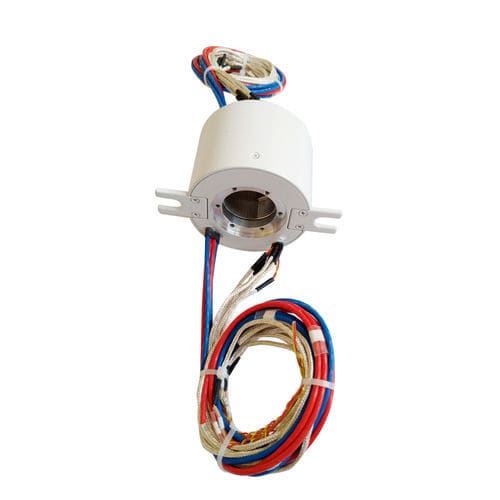

Crane slip ring DHK012

aluminum12 circuitsIP54

Short description
Applications: slip rings for industrial and mobile systems, including agricultural machinery, capping machines, control systems, medical robots, packaging machines, robotics, recreational facilities, satellite assemblies, wind tunnels, surveillance cameras, material handling, lifting equipment, cable reelers, construction machines, subsea applications and remotely operated vehicles.

Product detail
Ingiant DHK012-12-10A IP54 slip ring designed for lifting equipment, providing combined power and signal transmission for rotating connections.

Specification
DHK012-12-10A
The main parameters:

• Number of circuits: 12 channels
• Rated current: 10A
• Rated voltage: 0~240 VAC/VDC
• Working temperature: -40°C ~ +65°C
• Working humidity: ≤70%
• Protection level: IP54
• Insulation resistance: ≥1000 MΩ @500 VDC
• Insulation strength: 1500 VAC @50 Hz, 60 s, 2 mA
• Electrical contact material: precious metal
• Dynamic resistance variation: ≤10 MΩ
• Housing material: aluminum alloy
• Lead wire: colored Teflon-insulated, tinned stranded flexible wire
• Rotating speed: 0~600 rpm
• Lead wire length: 500 mm + 20 mm

Application field
These slip rings are widely used across civil and military sectors for CCTV security, industrial automation, power generation, measurement instruments, medical equipment and building construction. Ingiant also supplies multi-circuit, high-voltage, high-speed, high-frequency rotary joints and hybrid assemblies with hydraulic, pneumatic or encoder interfaces.

Our advantage

• Designed for accurate rotation and stable transmission; electrical contacts use precious metals and enhanced plating; torque and electrical noise are minimized. Product validated for extended service life (tested up to 10 million revolutions).
• Manufacturing capability: OEM and ODM services; production facilities over 6,000 m²; experienced R&D and production team of 100+ staff.
• After-sales support: 12-month warranty from date of sale; free repair or replacement for manufacturing defects within warranty terms.

Technical characteristics

• Model: DHK012-12-10A
• Number of circuits: 12 channels
• Rated current: 10A
• Rated voltage: 0~240 VAC/VDC
• Working temperature: -40°C ~ +65°C
• Working humidity: ≤70%
• Protection level: IP54
• Insulation resistance: ≥1000 MΩ @500 VDC
• Insulation strength: 1500 VAC @50 Hz, 60 s, 2 mA
• Electrical contact material: precious metal
• Dynamic resistance variation: ≤10 MΩ
• Lead wire: Colored Teflon insulated & tinned stranded flexible wire
• Rotating speed: 0~600 rpm
• Lead wire length: 500 mm + 20 mm
