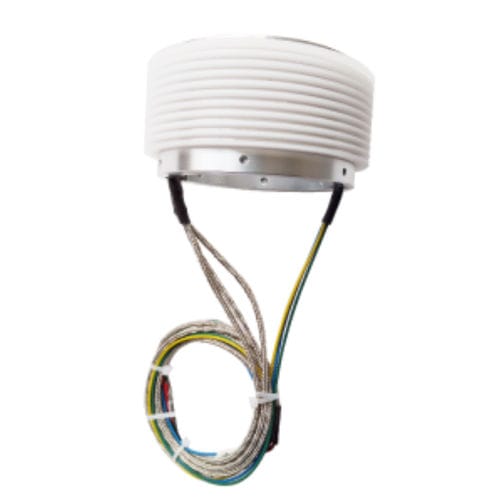

Electric slip ring DHK060-10-002

through-holehollow-shaftsub-assembly

Short Description
DHK060-10-002 separate slip rings are a through-hole (K) design with 10 circuits. Each circuit is rated between 2 and 10 A depending on configuration. Maximum working voltage is 240 V AC and 440 V DC. The rotor and brush holder are supplied separately to allow direct integration into customer systems. Hollow-shaft rotor options with various inner diameters are available. Custom combined power and signal versions can be supplied on request.

Advantages

• Extremely space-saving design suitable for compact assemblies
• Low weight for integration into weight-sensitive systems
• Designed for easy integration into open installations
• Manufactured to standard dimensions for interchangeability
• Simple replacement procedure for maintenance
• Repairable within defined limits
• Corrosion-resistant contact materials
• Minimal contact wear under normal operating conditions

Typical applications

• Actuator motors in hydraulic or pneumatic control systems
• Three-phase motors with internal speed monitoring
• Rotary switches and encoder interfaces on control cabinets
• Compact drive and control combinations for drones, models and space-constrained drives

Product naming description
(1) Product type: DH — electric slip ring
(2) Installation method: K — through hole
(3) Through-hole product bore diameter: 60 mm
(4) Total circuits: 10 circuits
(5) The rated current: marked per circuit; different rated currents may be specified for different circuits
(6) Identify number: -002 (identifies specification variation such as cable length, connector, installation method; subsequent variations use -003, -004, etc.)

Notes
Rotor and brush holder are supplied separately (unit without housing) to enable full integration into customer assemblies. Hollow-shaft rotor variants with different inner diameters are available. Customised combinations of power and signal channels can be produced to order.

Characteristics / Technical specifications

• Model family: DHK060 (through-hole slip ring)
• Designation: DHK060-10-002 (10 circuits)
• Number of channels / circuits: 10
• Rated current per channel: 2–10 A (depends on circuit configuration)
• Maximum working voltage: 240 V AC; 440 V DC
• Installation type: through-hole (K)
• Through-hole bore diameter: 60 mm
• Rotor / brush holder: supplied separately (unit without housing)
• Available rotor options: hollow shaft versions with different inner diameters
• Contact features: corrosion-resistant contacts, minimal wear
• Serviceability: easy replacement, repairable within narrow limits
• Customization: combined power & signal versions possible
