Drive unit 56000 Five

Overview

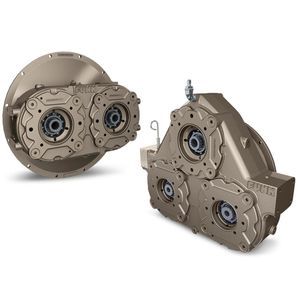

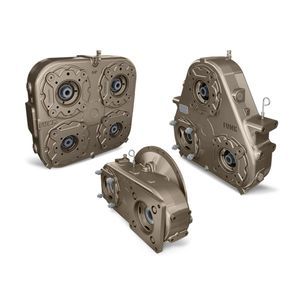

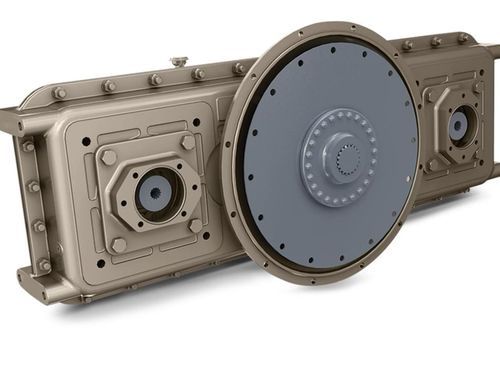

The John Deere 56000 Five pump drive delivers up to 708 kW (950 hp) in a modular, configurable package designed for demanding drivetrain and hydraulic pump applications. The design emphasizes flexible integration, high torque capacity and multiple mounting options for varied engine and system layouts.

Key Features

• Maximum power: 708 kW (950 hp)
• Modular design enabling flexible configurations
• High torque capacity for demanding applications
• Engineered for quiet operation
• Dedicated OEM service and support

Benefits
More than 5,000 pump drive configurations are available using a range of gear ratios, hydraulic pump adapters and mounting options. This configurability allows specification to project requirements for a tailored fit in drivetrain and hydraulic systems.

Configurability and Integration

• Available in four series up to 708 kW (950 hp)
• Operates as independent mount, direct-engine mount, or clutch-driven unit
• Adapters for multiple engine housings and flywheel sizes
• Supports a wide range of gear ratios and hydraulic pump adapters
• Integration support from application experts for engine-to-pump drive interfaces, including powershift and HMD transmissions, planetary drives and inboard planetary axles

Applications
Intended for demanding drivetrain and pump installations requiring modularity, tailored configuration and high torque capacity, including industrial hydraulic systems and mobile powertrain integrations.

Technical specifications

• Rated power: 708 kW (950 hp)
• Modular design for flexible configuration
• More than 5,000 possible pump drive configurations
• Mounting options: independent mount, direct-engine mount, clutch-driven
• Adapters: multiple engine housings and flywheel size options
• Integration capability with powershift and HMD transmissions, planetary drives, inboard planetary axles
• Designed for quiet operation
• Dedicated OEM service available
