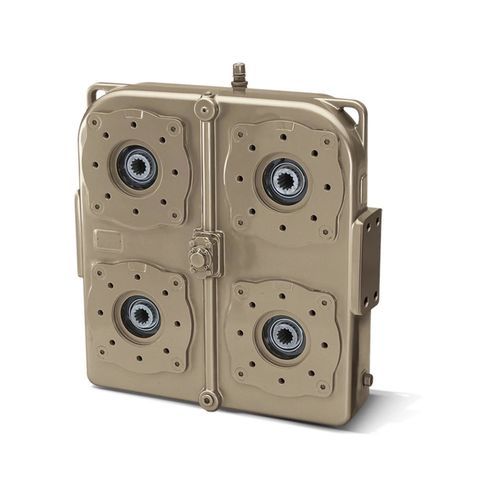

High-torque power take-off 57000 Four

Overview
John Deere pump drives provide the ultimate in design flexibility.

Key facts

• Maximum power: 708 kW (950 hp)
• Modular design
• Built for quiet operation
• Dedicated OEM service
• More than 5,000 pump drive configurations (variety of gear ratios, hydraulic pump adapters, mounting options)

Benefits

• Perfect Fit: With more than 5,000 pump drive configurations using a variety of gear ratios, hydraulic pump adapters, mounting options, and more — configurable to your design specifications.
• Modular Approach: Available in four series up to 708 kW (950 hp); configured for independent mount, direct-engine mount, or clutch-driven installation; adapters available for various engine housings and flywheel sizes.
• Integration Support: Application experts assist integrating the system from engine to pump drives, powershift and HMD transmissions, planetary drives, and inboard planetary axles.

General Pump Drive Data
Maximum Power: 708 kW
Maximum Input Torque: 2712 Nm
Maximum Output Torque: 2714 Nm
Maximum Input/Output Speed: 2500 rpm
Type: Four
Approximate Dry Weight: 318-418 kg
Pump Rotation: Anti-enginewise
Nominal Clutch Size: 292.1, 355.6, 457.2 mm
Oil Capacity: 8.52-9.46 L
Oil Type: JDM J20C specification
Maximum Input Power: 708 kW
Maximum Output Power (Per Pump Pad): 522 kW
Gear Centers: 355.6, 406.4 mm
Flywheel Covers: SAE 0, SAE 1

Gear Ratios
57000 Four - 14-in. (365-mm) Centers: 0.837:1, 1:1
57000 Four - 16-in. (406-mm) Centers: 0.774:1, 0.83:1, 1:1

Technical specifications

• Maximum Power: 708 kW (950 hp)
• Maximum Input Torque: 2712 Nm
• Maximum Output Torque: 2714 Nm
• Maximum Input/Output Speed: 2500 rpm
• Type: Four
• Approximate Dry Weight: 318-418 kg
• Pump Rotation: Anti-enginewise
• Nominal Clutch Size: 292.1, 355.6, 457.2 mm
• Oil Capacity: 8.52-9.46 L
• Oil Type: JDM J20C specification
• Maximum Output Power (Per Pump Pad): 522 kW
• Gear Centers: 355.6, 406.4 mm
• Flywheel Covers: SAE 0, SAE 1
