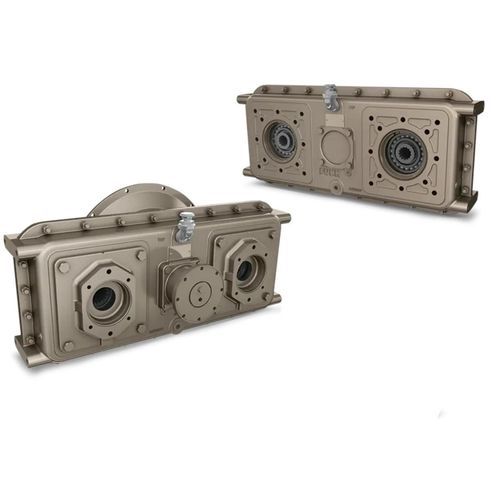

Drive unit 56000 Quad

Overview
John Deere pump drives provide design flexibility for demanding off-highway applications. The 56000 Quad delivers high power density, flexible mounting and supports up to four pumps through a modular architecture with multiple input options.

Key Features

• 708 kW (950 hp) maximum capability
• Modular design for flexible mounting and configuration
• Engineered for quiet operation
• Dedicated OEM service support and integration assistance

Benefits

• Perfect Fit — more than 5,000 pump drive configurations using a variety of gear ratios, hydraulic pump adapters, mounting options and more to match design specifications.
• Modular Approach — pump drives available in four series up to 708 kW (950 hp) and configurable as independent-mount, direct-engine-mount or clutch-driven units; adapters available for various engine housings and flywheel sizes.
• Integration Support — application expertise to integrate systems from engine to pump drives, powershift and HMD transmissions, planetary drives and inboard planetary axles.

General Pump Drive Data
Maximum Power: 708 kW
Maximum Input Torque: 2712 Nm
Maximum Output Torque: 2712 Nm
Maximum Input/Output Speed: 2500 rpm
Type: Quad
Approximate Dry Weight: 218 kg
Pump Rotation: Anti-enginewise (except through shaft-drive, enginewise)
Oil Capacity: 8.52 L
Oil Type: JDM J20C specification; MIL-L-2015C or API classification GL-5
Maximum Input Power: 708 kW
Maximum Output Power (Per Pump Pad): 708 kW
Gear Centers: 254 mm

Specifications

• Maximum Power: 708 kW (950 hp)
• Maximum Input Torque: 2712 Nm
• Maximum Output Torque: 2712 Nm
• Maximum Input/Output Speed: 2500 rpm
• Type: Quad (supports up to four pumps)
• Approximate Dry Weight: 218 kg
• Pump Rotation: Anti-enginewise (except through shaft-drive, enginewise)
• Oil Capacity: 8.52 L
• Oil Type: JDM J20C specification; MIL-L-2015C or API GL-5
• Maximum Output Power (Per Pump Pad): 708 kW
• Gear Centers: 254 mm
