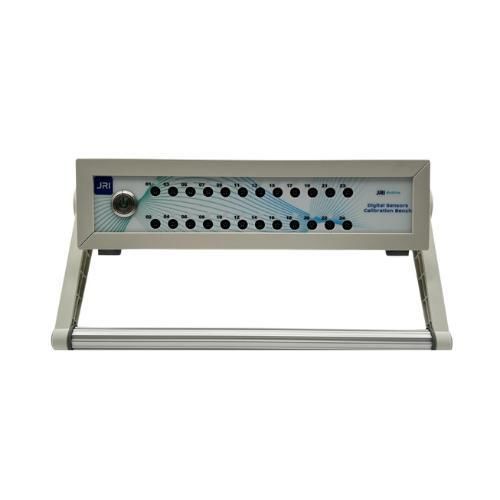

Humidity calibration bench

temperaturefor digital thermometersfor temperature sensors

Overview
Calibration bench for simultaneous calibration of up to 24 JRI digital probes. Sends calibration data, coefficients and certificates directly to the JRI‑MySirius application (cloud or on‑premises) via Ethernet (RJ45) or WiFi, with automatic upload. Real‑time channel status is visible via individual LEDs. Optional remote box enables calibration of JRI T or TH probes inside climatic chambers.

Key capabilities

• Calibrates up to 24 JRI digital probes simultaneously
• Direct transmission to JRI‑MySirius via Ethernet (RJ45) or WiFi; no Link module required
• Individual LEDs for real‑time per‑channel status
• Automatic upload of calibration coefficients, certificates and measurement data to JRI‑MySirius
• Optional remote box for chamber calibration of T or TH probes

Benefits

• Reduces calibration time by processing multiple probes in parallel
• Simplified workflow with automatic probe detection upon connection
• Seamless data flow to JRI‑MySirius for traceability and record keeping
• Quick configuration via Calib'Bench and MyToolBox with declaration by serial number
• Compatible with Green Digital Sensor Reference for reference measurements

Features (visual / operational)

• Per‑channel LEDs for immediate local status checking
• Simple configuration using the Calib'Bench tool and serial‑number declaration in MySirius
• Up to 24 channels to fully exploit temperature equipment capacity

Technical features / table
Number of channels: 24 T or TH sensors
Communication: WiFi, Ethernet (RJ45)
Configuration: USB (Calib'Bench / MyToolBox)
Interface: On/off button; 24 connectors for JRI digital probes
Operating temperature: Ambient temperature
Bench dimensions: 290 x 260 x 74 mm
Weight (excluding case): 1.8 kg
Power supply: 5V / 2A mains connection
Calibration module: MySirius 5.1 - Level 1 and 2 Calibration Module
References: See table in the product datasheet

Specifications / technical features

• Maximum simultaneous probes: 24 JRI digital probes
• Communications: Ethernet (RJ45) and WiFi
• Configuration interface: USB
• Local interface: On/off button and 24 probe connectors
• LEDs: Individual per‑channel LEDs for status
• Dimensions: 290 x 260 x 74 mm
• Weight (excluding case): 1.8 kg
• Power: 5V / 2A mains
• Software/Module: MySirius 5.1 - Level 1 & 2 Calibration Module
• Optional: Remote box for climatic chamber calibration
