Pt100 temperature sensor NOVA D RED

digitalUSBwireless

Overview
This mapping kit meets the requirements of FD X 15140 and IEC 60068 for mapping of climatic chambers via the mapping module of the JRI-MySirius platform.

Compliance
Fully meets FD X 15140 and IEC 60068 requirements to ensure reliable and compliant climatic chamber mapping.

Dedicated communication
Use of 15 NOVA SPY D RED probes connected to a Nano Link RED Ethernet, communicating on a dedicated channel to avoid any interference with an existing installation.

Description

• Direct installation in enclosures with low impact on the load
• Fast response time to comply with the new FD X 15140 and IEC 60068 standards for enclosure mapping
• Option to use a 4G cellular router combined with the Nano Link RED Ethernet to avoid connection to an Ethernet network
• Option to use another probe set for mappings below −40°C or for humidity mappings (HR%)

Assets

• Easy import into MySirius
• Low drift over time
• Interchangeable probes
• Wireless communication (2.4 GHz)
• Direct installation in the enclosure with negligible impact on the load

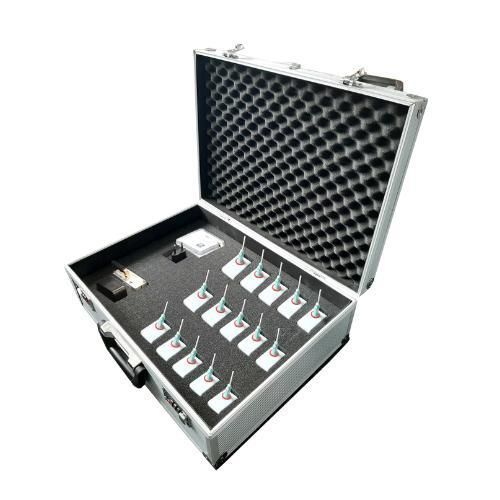

Composition

• 15 NOVA SPY D RED
• 1 Nano Link RED Ethernet + AC adapter and USB cable
• 1 Case
• Options:
  • Cellular 4G router
  • 15 Short Green digital sensors (short version)
  • 15 COFRAC calibration certificates
  • MySirius configuration import file

Caractéristiques / spécifications techniques

• Sensor type: PT100 on digital probes; Ø2.2×30 mm
• Recorder: NOVA SPY DIGITAL RED - IP68
• Communication: 2.4 GHz wireless communication with the LINK Ethernet or Wi‑Fi gateway
• Dimensions: 14.5 × 34.5 × 44 cm
• Temperature range: −40° to +80°C
• Accuracy: ±0.15°C from −40°C to +80°C
• Annual drift: <0.1°C
• Resolution: 0.01°C
• Response time σ50: ~20 s
• Composition summary: 15 NOVA SPY D RED; 1 Nano Link RED Ethernet + AC adapter and USB cable; 1 Case; optional 4G router, short green digital sensors, COFRAC certificates, MySirius import file
