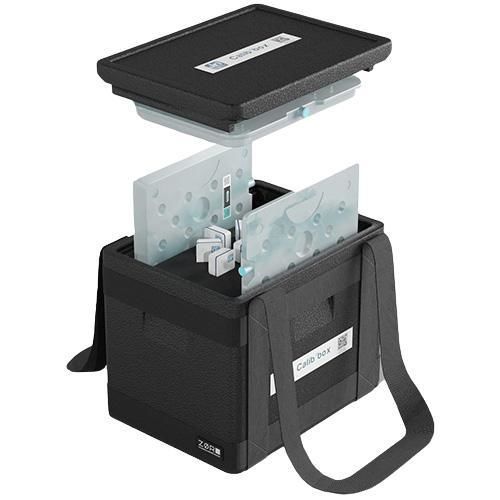

Cold eutectic plate Calib’Box S

Overview
Calib’Box S is a temperature generator using the latest eutectic plate technology combined with effective insulation material. It generates a constant temperature of 0°C with excellent stability and homogeneity. It is one of the means of calibration required to use the self-calibration function of MySirius and can be used under remote supervision by the JRI metrology laboratory.

Guided self-calibration

• Calibrate Nano SPY sensors easily via MySirius with step-by-step instructions.
• Remote supervision by JRI metrology laboratory ensures traceability and compliance.
• Automatic generation and online availability of calibration certificates after the operation.

How it works

• Follow the instructions on MySirius.
• Place a temperature reference and the probes to be calibrated inside the box.
• Press START to begin the calibration sequence.
• A notification is sent at the end of the operation and calibration certificates can be consulted online.
• To use the service, order a single self-calibration or a package of 10, 50 or 100 directly from MySirius.

Advantages

• Easy to use with guided procedures.
• Excellent consistency and stability for reliable, reproducible measurements.
• Generation of genuine verification reports compliant with current international metrological standards.
• Automatic adjustment to correct sensors in case of significant drift.

Features (summary)
Temperature generator using eutectic plate technology combined with effective insulation material; Generates a constant temperature of 0°C with excellent stability and homogeneity; Remote calibration service supervised by JRI metrology laboratory; Guided self-calibration via MySirius; Automatic adjustments and online certificates available.

Technical characteristics / specifications

• Dimensions: 395 x 295 x 350 mm
• Weight (with eutectic plate): ~ 6.5 kg
• Interface: QR Code showing how to use it
• Stability: Use with plate: ±0.02°C; Use in ice bath: ±0.01°C
• Homogeneity: Use with plate: ±0.03°C; Use in ice bath: ±0.02°C
• Content: 2 x 2 eutectic plates + foam support
