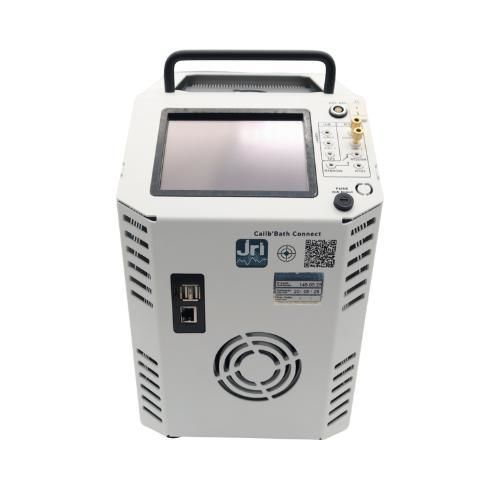

High-temperature calibration bath Calib’Bath Connect

low-temperaturefor temperature sensorsfor pyrometers

Product overview
Calib’Bath Connect is a programmable calibration oven that allows you to perform your metrological operations by simply defining your temperature levels.

Key features

• A standard temperature probe
• A high-performance calibrator for measurements
• A powerful processor for system control and report generation
• User-friendly interface for calibration and report printing, without additional software
• Equipped with an internal signal calibrator for reading mA inputs, thermocouples, RTD probes and thermostats
• Calib’Bath Connect is controlled directly from MySirius Calibration, version 5.1 onwards

Highlights / Product steps

• Programmable — This bath is programmable and allows you to create a programme to wait for several desired landings.
• Easy to use — Ready-to-use bath perfectly suited to carrying out metrological operations on your remote probes.
• Various inserts — To increase calibration possibilities.

Inserts available

• Standard dry insert for T2 or T3 type probes - included
• Insert for infrared probes/thermometers
• Insert for probes in an oil bath

Advantages

• Easy to use
• Excellent consistency and stability
• Generation of genuine verification reports compliant with current international metrological standards
• Automatic adjustment

Caractéristiques / spécifications techniques

• Dimensions: 315 x 180 x 270 mm
• Weight: ~ 12.5 kg
• Interface: LCD display
• Measurement range (at 23°C): -35°C to +155°C
• Accuracy: ±0.1°C
• Stability: ±0.02°C
• Heating time: 20 mins (from 25°C to 140°C)
• Cooling time: 40 min (from 25°C to -35°C)
• Power supply: 115 - 230 Vac / 50-60 Hz
• Insert options: Standard dry insert for T2 or T3 probes (included); insert for infrared probes/thermometers; insert for probes in an oil bath
