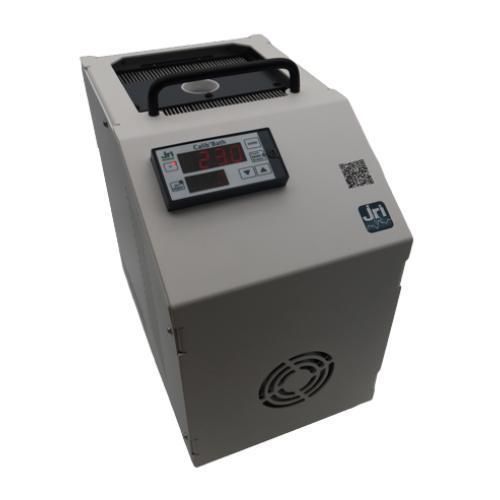

High-temperature calibration bath Calib’Bath

low-temperaturehigh-precisionfor temperature sensors

Overview
Calib’Bath is a dry JRI calibration bath providing a stable and accurate temperature environment for metrological operations across a range of −20°C to +100°C. It is compatible with the JRI MySirius self-calibration procedure for automated quality calibrations and designed for probe calibration in laboratory and field settings.

Key benefits

• High homogeneity and temperature stability for reliable calibrations
• Ready-to-use, user-friendly design for probe calibration tasks
• Multiple inserts available to extend calibration capabilities

Features summary

• Precision: homogeneity and stability appropriate for metrological use
• Ease of use: ready-to-use bath suited for calibrations of remote probes
• Multiple inserts: standard and optional inserts for digital probes increase flexibility

Description
The Calib’Bath is a dry calibration bath that maintains a controlled and accurate temperature range for temperature probe calibration. It can perform automated quality calibrations when used with the MySirius self-calibration procedure. The standard insert enables automatic calibration of up to 8 T2 and T3 probes, including a well for a reference probe. An optional insert is available for JRI digital probes (Evolution, X², Green) and supports calibration and adjustment of up to 5 digital probes.

Advantages

• Simple operation and quick setup
• Stable and reproducible temperature environment for metrological tasks
• Flexible insert options to cover a range of probe types

Technical specifications

• Dimensions: 315 x 180 x 270 mm
• Weight: ~12 kg
• Interface: LCD display
• Measurement range (at 23 °C): −20 °C to +100 °C
• Accuracy: ±0.1 °C
• Stability: ±0.02 °C
• Heating time: 25 min (from 25 °C to 140 °C)
• Cooling time: 25 min (from 25 °C to −25 °C)
• Power supply: 115–230 Vac / 50–60 Hz
• Inserts available: standard dry insert for T2/T3 sensors (included); dry insert for Digital Sensor, Digital Sensor X2 and Green Digital Sensor probes (optional)
