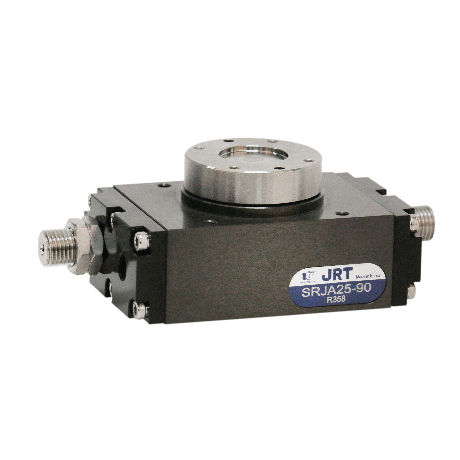

Rotary cylinder SRJlow-frictionstopper
Add to favorites
Compare this product
Characteristics
- Movement
- rotary
- Other characteristics
- low-friction, stopper
- Pressure
Min.: 3 bar
(43.51 psi)Max.: 7 bar
(101.53 psi)- Torque
Min.: 0.093 Nm
(0.069 ft.lb)Max.: 1.48 Nm
(1.092 ft.lb)- Rotation angle
90 °, 180 °
- Operating Temperature
Min.: -5 °C
(23 °F)Max.: 60 °C
(140 °F)
Description
Table connect type in unused key
Durability improvement by built in wearing
Low rotation resistance through using low-friction packing
Ease to adjust angle by stopper (possible to attach absorber)
Economical rotary cylinder of rack & pinion structure
Possible to select absorber
Catalogs
No catalogs are available for this product.
