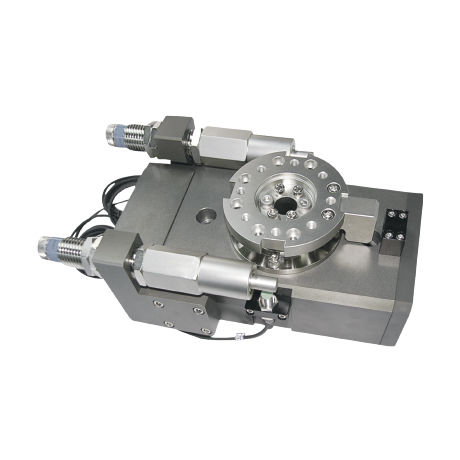

Rotary cylinder MSRJ
Add to favorites
Compare this product
Characteristics
- Movement
- rotary
- Bore
Min.: 20 mm
(0.79 in)Max.: 50 mm
(1.97 in)- Pressure
Min.: 3 bar
(43.51 psi)Max.: 7 bar
(101.53 psi)- Torque
0.26 Nm, 0.55 Nm, 0.79 Nm, 1.6 Nm, 3.2 Nm
(0.192 ft.lb, 0.406 ft.lb, 0.583 ft.lb, 1.18 ft.lb, 2.36 ft.lb)- Operating Temperature
Min.: -5 °C
(23 °F)Max.: 60 °C
(140 °F)
Description
Rotary cylinder that may stop at the position in the middle of total rotation angle
Patent-registered product with new technology
SDRJ the same mounting dimensions ( length, minor differences in delivery) and expanding Usability
Enables position detection using proximity sensor at reference position, intermediate stop position, and complete rotation position.
