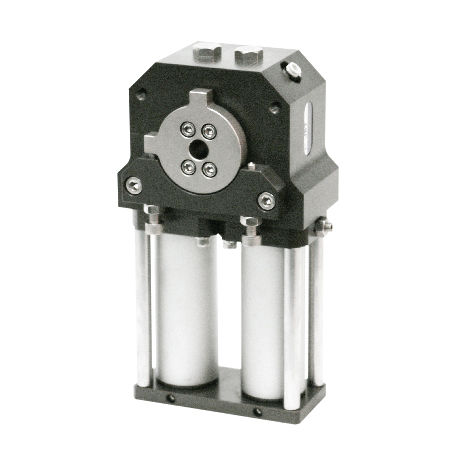

Pneumatic cylinder RJC seriesrotary
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Bore
40 mm, 63 mm, 80 mm
(1.57 in, 2.48 in, 3.15 in)- Pressure
Max.: 7 bar
(101.53 psi)Min.: 3 bar
(43.51 psi)- Rotation angle
90 °, 180 °
- Speed
14.43 mm/s, 46.52 mm/s, 97.96 mm/s
Description
Combination oil's incompressibility to pneumatic actuator's output shaft by chain rotation driven equipment which realizes rotary motion
Outstanding shock absorption about high moment of inertia through built hydro cushion
Possible to silent rotation at low speed part by oil pressure
Ease to organize modular and other actuator through hollow's rotation axis
Attention to rotation direction and criterion tap position
