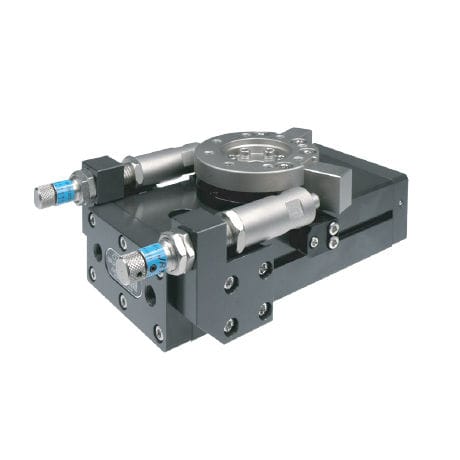

Pin cylinder SDRJstopperdoubletubular
Add to favorites
Compare this product
Characteristics
- Technology
- pin
- Other characteristics
- stopper, double, tubular
- Bore
Max.: 63 mm
(2.48 in)Min.: 16 mm
(0.63 in)- Torque
Max.: 14.7 Nm
(10.842 ft.lb)Min.: 0.235 Nm
(0.173 ft.lb)- Rotation angle
90 °, 180 °
- Speed
Max.: 3.7 mm/s
Min.: 0.2 mm/s
Description
Double power type which 2 cylinders generating thrust at the same time
Pursued convenience of mounting and air pipe by tubular shaft design
Real stopping system of stop force in same as turning's
Minimizing gap structure through bracket which using key, alignment pin bolt
Rational element application for maximum functions
SDRJ is basis attaching shock absorber to every item. (choice rubber
