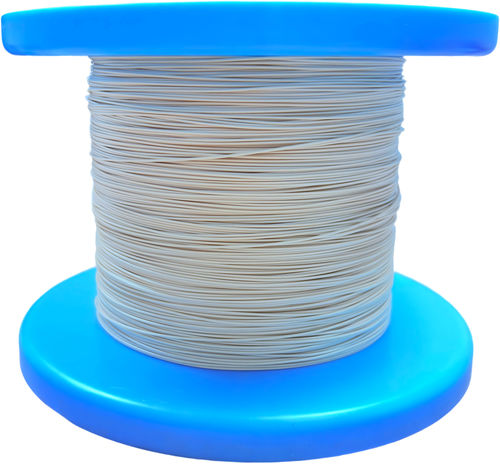

Insulated wire JK-01

copperPEEKround

1. Temperature resistance level 220℃~240℃。 2. Products and specifications meet standards NEMA MW85C, IEC 60317-56 and 60317-0-7, Thermal Life IEC 60950 Annex U, IEC 62368-1, UL 1446 Insulation Systems Standards. 3. Test conditions IEC 60851, IEC UL 60950 Annex U, IEC 61558-1, IEC 61558-2-16, UL 2353。 Application Electric motors, solenoid valves, transformers, electronic products. Advantages - Can meet FIW7~9 fully insulated wire - Better winding - 100% AC spark testing during the extrusion process ensures that the insulation is free of any defects - Because it is a continuous extrusion method, there are no pinholes - Thermal conductivity 0.29 W/mK - Halogen Free, PFAS Free - Surge-Resistant Partial discharge deterioration-Resistant - Excellent dielectric strength - Chemical resistance - Wear resistance - Excellent fire resistance, low smoke - High mechanical strength, anti-flattening ability up to 4000N/10CM, anti-pulling ability up to 400N - Remains soft at low temperatures and can work for a long time at 150℃~200℃ to maintain perfect performance
