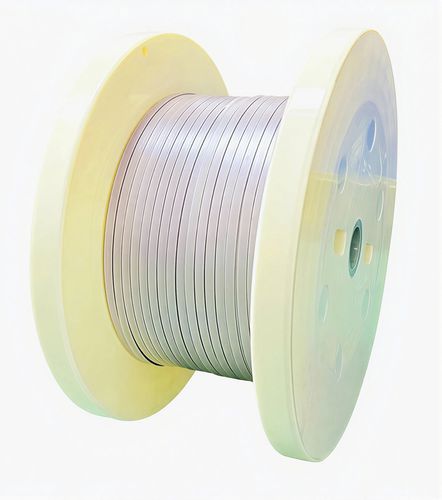

Insulated wire JK-02

coppertin-plated copperPEEK

Enamel insulation＞40μmm or more. Extruded thick insulation ≥50μmm or more 2. Products and specifications meet standards IEC 60317-0-2 DIN EN 60317-0-2 – version of 10/2014 DIN EN 60851-6 – version of 2013 Application Winding wires for flat-wire drive motors for transformers, industrial motors, ships, rail vehicles, HVs (hybrid vehicles), and EVs (electric vehicles). 1. Advantages Excellent heat resistance (heat resistance grade ≧220℃) performance. High damage resistance. Excellent high thermal conductivity. Excellent flame retardancy (UL-94 V-0)/CMP/VW-1, emits almost no smoke. Excellent high and low temperature impact resistance. Excellent corona resistance. Thin insulation high PDIV. Excellent resistance to ATF oil or water.
