Multi-channel process controller JUMO meroTRON

multiple-outputprogrammableModbus

Overview
The modular multifunction controller provides a configurable user interface and scalable hardware. Analog and digital inputs/outputs, counting inputs and communication interfaces can be fitted as required. The device supports complex applications via a second control channel, math and logic functions, and programmable control using ST code.

Highlights

• Real-time sequence controls
• Wide range of connection options
• PLC functionality (ST programming)

Customer benefits at a glance

• Reliable process control with program start and real-time sequence controls
• Capability to implement sophisticated applications using math, logic functions and ST code
• Faster commissioning and operation thanks to a customizable device menu
• No additional hardware required due to the second control channel and integrated PLC and data logger functions
• Process optimization enabled by startup live recording

Technical data
General technical data
Inputs: 1 analog input and 1 digital input; optional additional analog, digital and counting inputs (10 kHz); calibration of analog inputs according to CQI-9 and AMS2750 (optional)
Outputs: 2 relays (normally open contact); optional additional analog outputs, relays (normally open contact, changeover contact), solid state relays, logic outputs (0/14 V or 0/24 V) and open collector outputs
Control types: two-state controller, three-state controller, modulating controller, position controller, continuous controller, program controller
Display: 2 LCD displays with 18 segments each including display of texts for menu, parameters, and process information

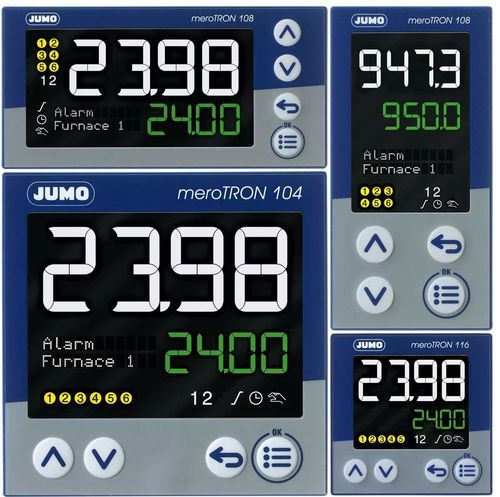

Formats: 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm
Interfaces: USB host and USB device (setup); optional: RS485 (Modbus RTU master/slave); Ethernet (Modbus TCP master/slave); PROFINET device
Special features: Configurable operating levels; modular structure with option cards; 2 timers; 8 limit-value monitoring functions; fast hardware counters (12.5 kHz); operating hours and service counters; data logger; Modbus master function; logic outputs (24 V) can supply two-wire transmitters; PLC function via ST code; special functions for plastics industry use
Connections: Removable terminal strips with PUSH IN
Voltage supply: AC 110–240 V or AC/DC 24 V
Approvals: UL listed; AMS 2750; CQI-9

Technical specifications

• Inputs: 1 analog input, 1 digital input; optional extra analog/digital/counting inputs (10 kHz)
• Outputs: 2 relays (NO); optional analog outputs, changeover relays, SSRs, logic outputs (0/14 V or 0/24 V), open collector
• Control types: two-state, three-state, modulating, position, continuous, program controller
• Display: dual LCDs (18 segments) for menus, parameters and process data
• Formats available: 48×48 mm; 48×96 mm; 96×48 mm; 96×96 mm
• Interfaces: USB host/device; optional RS485 (Modbus RTU); Ethernet (Modbus TCP); PROFINET
• Special features: modular option cards, user-definable operating levels, 2 timers, 8 limit monitoring functions, fast hardware counters (12.5 kHz), operating/service counters, data logger, Modbus master, PLC via ST code
• Connections: removable PUSH IN terminal strips
• Power supply: AC 110–240 V or AC/DC 24 V
• Approvals: UL listed; AMS 2750; CQI-9
