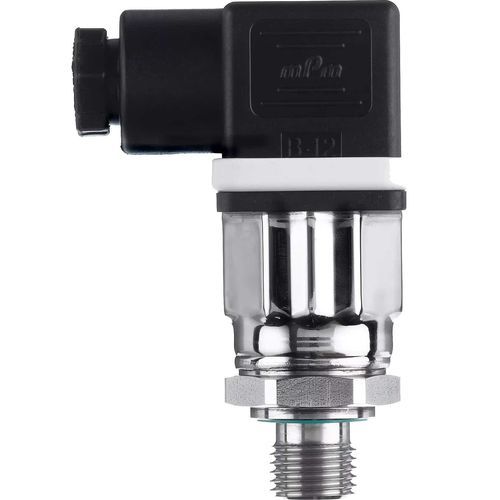

Relative pressure transmitter JUMO MIDAS S05

absolutesilicon2-wire

Overview
This pressure transmitter measures relative and absolute pressure. The measuring system is fully welded and compatible with all media. The silicon sensor tolerates overloads even at low ranges. Typical applications include mechanical and plant engineering and hydrogen systems (electrolyzers, synthesis plants, mobile fuel cells).

Highlights

• Modular design
• Minimal installation effort
• Overload resistant with long-term stability

Technical data (table)
General technical data
Output: 4 to 20 mA (two-wire); DC 0 to 10 V (three-wire)
Process connection: Standard industry screw connections
Accuracy (linearity): 0.2 to 0.3 %
Medium temperature: -40 to +125 °C
Input (measuring range): 0 to 100 bar (relative); 0 to 40 bar (absolute)
Measuring system: Silicon sensor with stainless steel separating membrane

Technical specifications

• Output: 4 to 20 mA (two-wire); DC 0 to 10 V (three-wire)
• Process connection: Standard industry screw connections
• Accuracy (linearity): 0.2 to 0.3 %
• Medium temperature: -40 to +125 °C
• Input (measuring range): 0 to 100 bar relative; 0 to 40 bar absolute
• Measuring system: Silicon sensor with stainless steel separating membrane
• Fully welded measuring system suitable for all media
• Suitable for hydrogen applications (electrolyzers, synthesis plants, mobile fuel cells)
