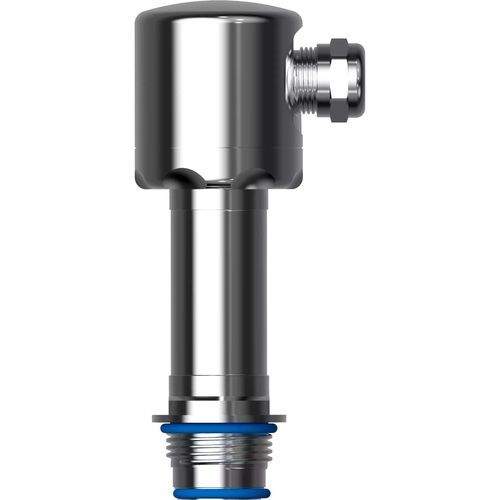

Absolute pressure transmitter JUMO TAROS S46 H

relativeM12 connectorbare wires

Description
The JUMO TAROS S46 H is a hygienic pressure transmitter designed for precise, long-term pressure measurement in food and pharmaceutical processes. It provides accurate process monitoring across a wide temperature range and is suitable for applications requiring hygienic design and FDA-compliant materials.

Short Description
Hygienic pressure transmitter for food, beverage and pharmaceutical industries

Highlights

• Hygienic process connections (milk cone, tank connection, EHEDG-certified options)
• High process reliability and stability
• Zero point correction via magnet

Application areas

• Food and beverage production
• CIP and SIP cleaning processes
• Sterilizers and autoclaves
• Pharmaceutical, medical and biotechnology processes
• All hygienic pressure measurement applications

Process connections and materials
Hygienic process connections: milk cone, tank connection. EHEDG-certified options: clamp, VARIVENT®, JUMO PEKA. Optional electrolytically polished process connections. Wetted parts: stainless steels 1.4404 and 1.4435 (316L). FDA-compliant materials.

Electrical connection
Attached cable, round plug M12 × 1, line socket or terminal head depending on configuration.

Specifications

• Measuring range: 0.1 to 100 bar (relative); 0.25 to 40 bar (absolute)
• Medium temperature: -25 to +125 °C (max. 140 °C for 1 h/day)
• Accuracy: up to 0.25 % of span at 20 °C
• Linearity: 0.1 %
• Long-term stability: 0.1 %
• Wetted parts: 1.4404 and 1.4435 (316L)
• Process connections: milk cone, tank connection; EHEDG-certified: clamp, VARIVENT®, JUMO PEKA; optional electropolished
• Electrical connection: attached cable, M12 × 1, line socket, terminal head
• Protection rating: IP65 to IP69 (depending on electrical connection)
• Supply voltage: DC 24 V
• Special features: magnetic zero-point correction, hygienic connections, FDA-compliant materials
