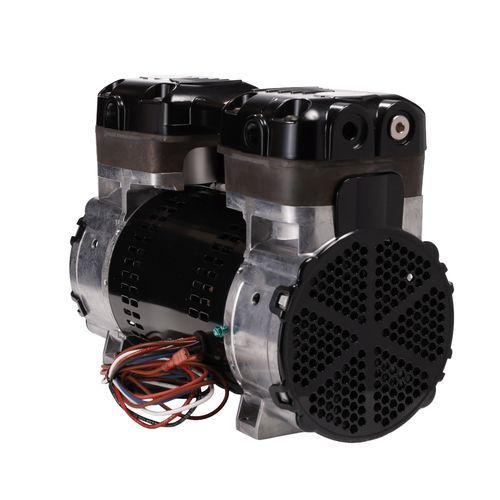

Rocking piston compressor 106R series

airelectrically-poweredstationary

Overview The 106R550-102-N600X is a rocking piston compressor and vacuum-capable pump engineered for oil-free operation and clean, contaminant-free output. It delivers continuous pressure performance with low exhaust temperature and quiet operation; a Sound Shield option is available for reduced perceived loudness.

Key features

• Dual functionality: operates as a compressor and as a vacuum pump
• Oil-free design for contaminant-free air delivery
• Low noise operation; optional Sound Shield reduces perceived loudness
• Compact footprint with multiple mounting and porting options for flexible installation
• Corrosion-resistant materials and design aimed at lower exhaust temperatures and extended service life

Applications Suited for applications requiring steady, precise airflow and clean compressed air such as medical devices, laboratory equipment, food & beverage systems, sprinkler and control systems, and other environments where contaminant-free pressurized air is required.

Specifications

• Item #: 106R550-102-N600X
• Series: Rocking Piston (106R series)
• Description: Rocking piston compressors & pumps
• Horsepower (HP): 0.75
• Amps: 50Hz = 3.8 A; 60Hz = 7.4 / 3.8 A
• Weight: 30 lb / 14 kg
• Open Flow: 50Hz = 2.3 CFM (~65 LPM); 60Hz = 2.7 CFM (~76 LPM)
• Voltage: 50Hz = 220-230 V; 60Hz = 115-120 / 230-240 V
• Regulatory: cURus
• Max Pressure: 175 psi / 12.07 bar
• Flow @ Max Pressure: 50Hz = 1.6 CFM (~45.3 LPM); 60Hz = 1.8 CFM (~51.0 LPM)
• Sound Level: 66 dBA (typical)
• Max Vacuum: N/A (not applicable for this model)
• Dimensions (L x W x H): 11.79 in x 5.69 in x 8.9 in / 299.5 mm x 144.5 mm x 226.1 mm
• Mounting Dimensions: 8 in x 3.5 in / 203.2 mm x 88.9 mm
• Phase: Single Phase
• Country of Origin: USA
• Options & notes: Available with Sound Shield (quoted reduction up to ~25% dB(A) and ~40% Sone). Designed for cool operating temperatures and long service life. Oil-free operation ensures contaminant-free output.
