Rotary vane compressor Rotary Vaneairmotorlessstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- motorless
- Portability
- stationary
- Application domain
- industrial
- Applications
- process
- Other characteristics
- low-noise
- Pressure
1.03 bar
(14.94 psi)- Flow
25.5 m³/h
(900.52 ft³/h)- Power
1.12 kW
(1.52 hp)- Length
254 mm
(10 in)- Width
177.8 mm
(7 in)- Height
16.4 mm
(0.65 in)- Weight
15 kg
(33.1 lb)- Noise level
82 dB
Description
Product

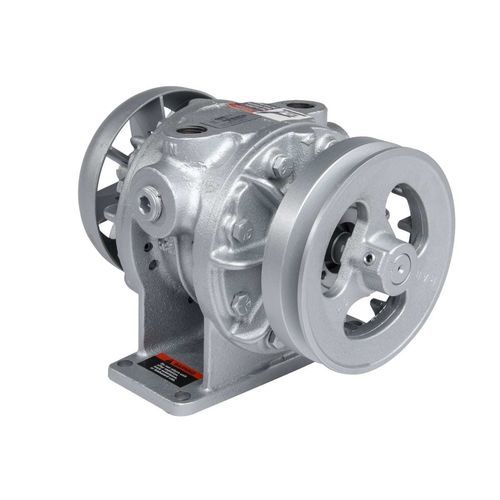

Rotary Vane Compressors & Pumps (Separate Drive) by Gast. Item 1550-600 from the Rotary Vane series.
Key information
Technical specifications
Rotary Vane Compressors & Pumps (Separate Drive) by Gast. Item 1550-600 from the Rotary Vane series.
Key information
- SKU: 1550-600
- Series: Rotary Vane
- Drive type: Separate drive
- Brand: Gast
Technical specifications
- Horsepower: 1.5 HP
- Open flow (60 Hz): 15 CFM; Open flow (metric, 60 Hz): 425 LPM
- Open flow (50 Hz): not specified
- Max pressure: 15 psi (standard)
- Max pressure (metric): 1.03 Bar
- Max vacuum: 20 in Hg
- Amps: not specified
- Voltage: not specified
- Sound level: 82 dBA
