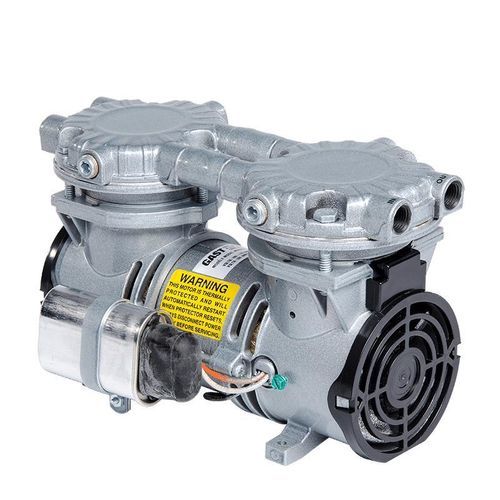

Rocking piston vacuum pump LAA-V103-NQ

dry110VAC115VAC

Product

• Name: LAA-V103-NQ
• Family / Technology: Rocking Piston Vacuum Pumps (Rocking Piston)
• Manufacturer / Brand: Gast

Overview

• Rocking piston vacuum pump designed for general vacuum applications. Item LAA-V103-NQ, Rocking Piston series.

Data from specification table (product line)
SKU | HP | Open Flow [cfm] (50Hz / 60Hz) | Open Flow [lpm] (50Hz / 60Hz) | Max Pressure [psi / Bar] | Max Vacuum (In Hg) | Amps (50Hz / 60Hz / DC) | Voltage (50Hz / 60Hz / DC) | Sound Level (DBA)
LAA-V103-NQ | 0.17 | 1.2 / 1.5 | 34 / 42 | — | 27.5 | 3.2 / 3.5 / — | 110 / 115 / — | 70

Remarks

• Empty fields indicated by '—' mean the value is not provided in the product page table.
• Units and value order follow the headings in the product page table.

Technical features / specifications

• Model reference: LAA-V103-NQ
• Series: Rocking Piston (Rocking Piston series)
• Power (HP): 0.17 HP
• Free flow: approx. 1.2 CFM (50Hz) / 1.5 CFM (60Hz) — approx. 34 LPM (50Hz) / 42 LPM (60Hz)
• Max Vacuum: 27.5 in Hg
• Current (Amps): approx. 3.2 A (50Hz) / 3.5 A (60Hz)
• Approximate sound level: 70 dBA
• Voltage / motor configuration: values listed in the table (e.g. 110 / 115 for certain frequencies)
