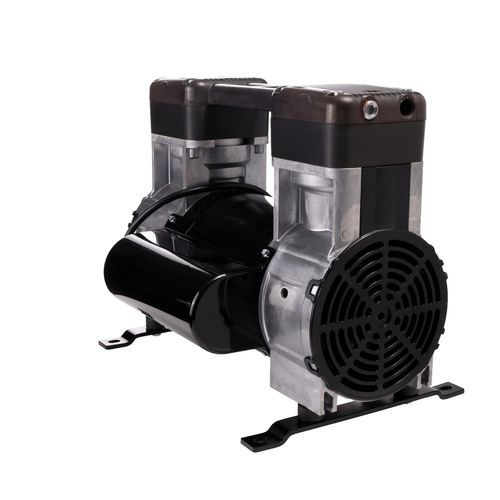

Rocking piston compressor 120R665-P101-N800NX

airelectrically-poweredoil-free

Description Designed for maximum efficiency with optimum performance, the 120R665-P101-N800NX is a 2.0 HP oil-free rocking piston compressor/pump that delivers clean contaminant-free pressure or vacuum. The unit operates at 200-240V AC with a maximum continuous pressure of 145.0 PSI and an open flow of 9.2 CFM (60 Hz). Available with Sound Shield, this model is engineered to provide high airflow with lower amp draw while occupying less space and using less energy. The construction uses corrosion-resistant materials to ensure reliable oil-free operation across a wide range of pressures and airflow rates.

Highlights

• Versatile functionality: can operate as both a compressor and a vacuum pump
• Higher-pressure performance: patented crossover chamber design regulates airflow to dampen sound and optimize performance
• Available with Sound Shield: reduces dB(A) by up to 25% and Sone by up to 40% without affecting performance
• High pressure at lower amps: compact footprint with efficient power draw

Applications

• Healthcare
• Food & beverage
• Laboratory equipment
• Sprinkler systems

Technical specifications

• Model / SKU: 120R665-P101-N800NX
• Series: Rocking Piston
• Short description: Rocking Piston Compressors & Pumps (oil-free)
• Brand: Gast
• HP: 2.0 HP
• Amps: 6.5 (50 Hz), 8 (60 Hz)
• Weight: 60 lb / 27 kg
• Open Flow (50 Hz / 60 Hz): 7.9 CFM / 9.2 CFM (224 LPM / 261 LPM)
• Voltage: 200-230 V (50 Hz), 200-240 V (60 Hz)
• Max Pressure: 145 PSI / 10.0 Bar
• Flow @ Max Pressure (50 Hz / 60 Hz): 2.3 CFM / 2.9 CFM (65.1 LPM / 82.1 LPM)
• Sound Level: 76 dB(A)
• Max Vacuum: N/A
• Phase: Single Phase
• Regulatory: CE
• Country of Origin (COO): USA
• Dimensions (in / mm): 15.33 L x 10.5 W x 12.69 H in (389.4 x 266.7 x 322.3 mm)
• Mounting Dimensions (in / mm): 13 L x 9.24 W in (330.2 x 234.7 mm)
• Available option: Sound Shield (industry-first sound reduction accessory)
