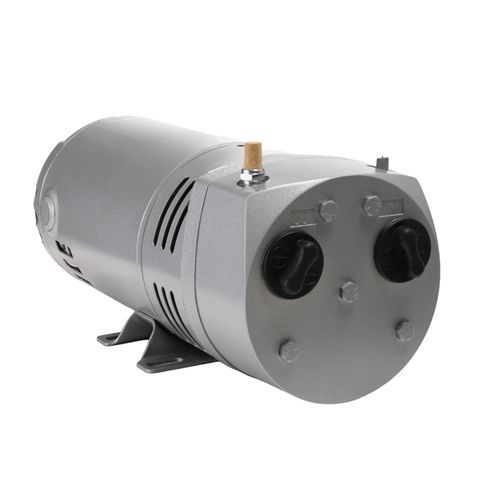

Rotary vane compressor airACstationary
Add to favorites
Compare this product
Characteristics
- Technology
- rotary vane
- Type
- air
- Power source
- AC
- Portability
- stationary
- Application domain
- for medical applications, for food applications, for scientific research
- Voltage
- 220 V, 230 V, 115 V, 110 V
- Other characteristics
- compact, low-noise, electric
- Pressure
0.69 bar
(10.01 psi)- Flow
Max.: 7.65 m³/h
(270.16 ft³/h)Min.: 5.1 m³/h
(180.1 ft³/h)- Power
0.19 kW
(0.26 hp)- Length
298.2 mm
(11.74 in)- Width
143 mm
(5.63 in)- Height
147.6 mm
(5.81 in)- Weight
15 kg
(33.1 lb)- Noise level
70 dB
Description
Overview
Compact rotary vane compressor/pump 0523-101-G588NDX engineered for continuous-use applications requiring low noise and pulse-free airflow. Motor-mounted 1/4 HP unit suitable for 50/60 Hz AC supply. Delivers up to 10 PSI (0.69 bar) maximum pressure, up to 26 in Hg maximum vacuum and open flow up to 4.5 CFM (127 LPM). Sound level is under 70 dBA; AC models include thermal protection for motor winding safety.
Applications
Highlights
Technical specifications
Compact rotary vane compressor/pump 0523-101-G588NDX engineered for continuous-use applications requiring low noise and pulse-free airflow. Motor-mounted 1/4 HP unit suitable for 50/60 Hz AC supply. Delivers up to 10 PSI (0.69 bar) maximum pressure, up to 26 in Hg maximum vacuum and open flow up to 4.5 CFM (127 LPM). Sound level is under 70 dBA; AC models include thermal protection for motor winding safety.
Applications
- Medical suction devices
- Environmental soil remediation
- Laboratory processes (distillation, drying)
- Food and beverage packaging and conveying
Highlights
- Low maintenance and longevity: Designed for extended service intervals and high uptime
- Ultra-quiet and low vibration: Suitable for noise-sensitive environments and confined installations
- Pulse-free operation: Provides smooth, continuous airflow with minimal pressure fluctuations
- Thermal protection (AC models): Protects motor windings in stall or overload conditions
Technical specifications
- Item #: 0523-101-G588NDX
- Series: Rotary Vane
- Description: Rotary Vane Compressors & Pumps (Motor Mounted)
- HP: 0.25
- Amps: 50Hz: 4.4/2.5; 60Hz: 4.4/2.2; DC: —
- Weight: 32 lb (15 kg)
- Open Flow (standard): 50Hz: 4 CFM; 60Hz: 4.5 CFM
- Open Flow (metric): 50Hz: 113 LPM; 60Hz: 127 LPM
- Voltage: 50Hz: 110/220-240 V AC; 60Hz: 115/220-230 V AC; DC: —
- Regulatory: cURus
- Max Pressure: 10 PSI (0.69 Bar)
- Phase: Single Phase
- Country of Origin: US
- Flow @ Max Pressure (standard): 50Hz: 3 CFM; 60Hz: 3.5 CFM
- Flow @ Max Pressure (metric): 50Hz: 85.0 LPM; 60Hz: 99.1 LPM
- Sound Level: <70 DBA
- Max Vacuum: 26 in Hg
- Dimensions (standard): 11.74 L x 5.63 W x 5.81 H (in)
- Dimensions (metric): 298.2 L x 143.0 W x 147.6 H (mm)
- Mounting Dimensions (standard): 2.75 L x 4.25 W (in)
- Mounting Dimensions (metric): 69.9 L x 108.0 W (mm)
