Rotary vane vacuum pump 2067-V103

for laboratoryfor foodfor medical applications

Overview

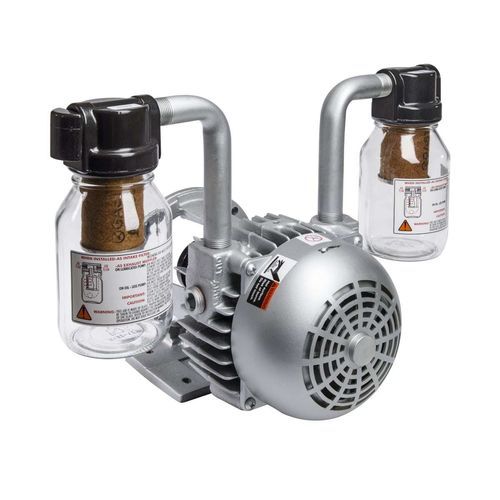

The compact 2067-V103 rotary vane pump is designed for continuous industrial use where higher pressure, airtight sealing and quiet operation are required. It delivers pulse-free flow and can be supplied as oil-free or lubricated, making it adaptable to vacuum or compression duties. The unit is part of Gast's separate-drive rotary vane series and is configurable for vacuum pump or air compressor installations.

Highlights

• Separate Drive: Allows selection of the motor best suited to application flow and duty cycle requirements.
• Oil-Free or Lubricated Options: Supports contamination-sensitive processes as well as heavy-duty compressed air applications.
• Pulse-Free Flow: Ensures smooth, continuous output without significant pressure pulsations.
• Low Maintenance: Accessible vanes and filters simplify servicing and reduce downtime.

Applications

• Medical suction and diagnostics equipment
• Environmental soil remediation systems
• Laboratory vacuum processes (distillation, drying)
• Food & beverage packaging and product conveying

Documentation (selected)

• Gast Product Line Brochure (PDF)
• 2067-V103 Technical Data Sheet (PDF)
• Operation & Maintenance Manual (PDF)

Technical specifications

• Series: Rotary Vane
• Item / SKU: 2067-V103
• Type / Description: Rotary Vane Pumps (Separate Drive)
• Horsepower (HP): 1
• Open Flow: 17 CFM (60 Hz) — 481 LPM (60 Hz)
• Maximum Continuous Pressure: 17 PSI
• Maximum Vacuum: 28 in Hg
• Sound Level: 80 dBA
• Weight: 55 lb (25 kg)
• Dimensions (Standard): 11.48 in L x 17.69 in W x 13.12 in H — 291.6 mm L x 449.3 mm W x 333.2 mm H
• Mounting Dimensions: 3 in x 4.88 in — 76.2 mm x 124.0 mm
• Phase: None (separate drive)
• Country of Origin (COO): USA
• Regulatory: N/A
