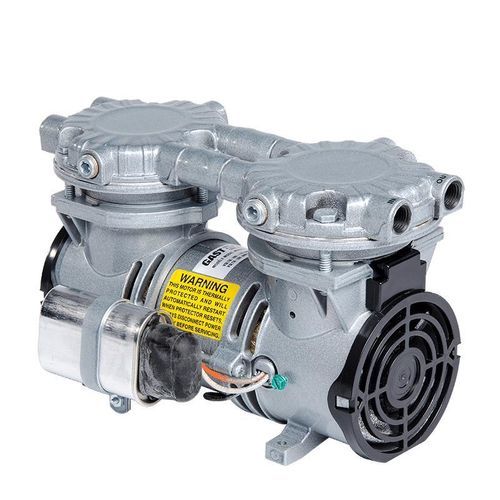

Rocking piston vacuum pump LAA-V103-NQ

oil-free110VAC115VAC

Description
Compact, lightweight rocking piston vacuum pump LAA-V103-NQ engineered for low noise and minimal vibration in noise-sensitive industrial environments. Oil-free operation provides a clean, contaminant-free vacuum. The LAA-V103-NQ delivers reliable vacuum performance for continuous or intermittent applications and belongs to the LAA (twin-cylinder) family; the related LOA single-cylinder variant can also operate as an air compressor where required.

Highlights

• Versatile family: LAA for vacuum applications; LOA variant can serve as vacuum pump and low-flow compressor
• Quiet operation & low vibration: Suited to noise-sensitive workspaces
• Oil-free & corrosion-resistant: Clean, contaminant-free output
• Compact & lightweight: Easy integration — 5 kg, compact footprint

Technical specifications

• Item / SKU: LAA-V103-NQ
• Series: Rocking Piston
• Description (short): Rocking Piston Vacuum Pumps
• Power (HP): 0.17
• Open Flow (60 Hz): 1.5 CFM (42 L/min)
• Open Flow (50 Hz): 1.2 CFM (34 L/min)
• Max Vacuum: 27.5 in Hg
• Max Continuous Pressure (operating vacuum performance): 27.5 in Hg
• Voltage (60 Hz): 115 V AC
• Voltage (50 Hz): 110 V AC
• Amps (60 Hz): 3.2 / 3.6
• Amps (50 Hz): 3.2 / 3.5
• Phase: Single Phase
• Regulatory: UR
• Country of Origin (COO): US
• Weight: 10.4 lb / 5 kg
• Sound Level: 70 dBA
• Dimensions (mm): 247.1 L x 109.2 W x 154.4 H
• Dimensions (in): 9.73 L x 4.3 W x 6.08 H
• Mounting Dimensions (mm): 139.7 L x 88.9 W
• Mounting Dimensions (in): 5.5 L x 3.5 W
