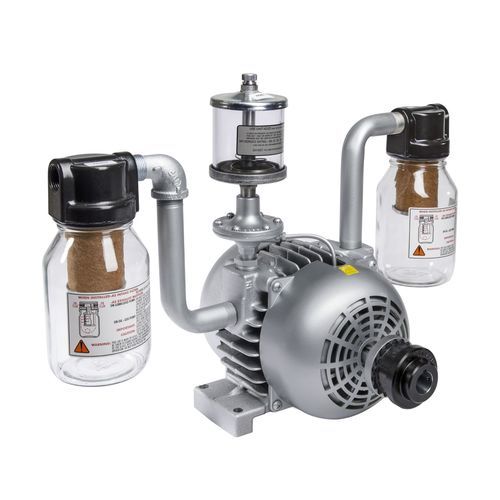

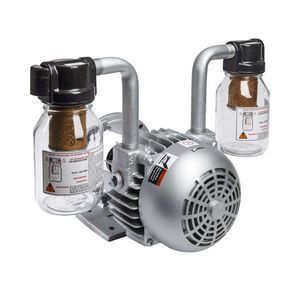

Rotary vane vacuum pump 1065-V2A

oil-freeDCAC

Overview The 1065-V2A is a compact rotary vane vacuum pump engineered for continuous operation in noise-sensitive environments. Designed for ultra-quiet, pulse-free performance with airtight sealing, it provides reliable, contaminant-controlled vacuum for industrial and laboratory applications. The 0.5 HP 1065-V2A delivers up to 8.5 CFM (60 Hz) open flow, a maximum continuous pressure of 8.5 PSI (60 Hz) and a maximum vacuum of 28 in Hg. Available in oil-free or lubricated configurations and supplied as a separate-drive unit for motor selection flexibility.

Highlights

• Separate drive: enables selection of motor technology best suited to application flow and control requirements.
• Oil-free or lubricated options: adaptable to processes with purity or lubrication needs.
• Pulse-free operation: smooth, continuous flow with minimal pressure fluctuation.
• Low maintenance: easily serviceable vanes and filters to extend uptime.

Product information Part of the Rotary Vane series (Separate Drive). Models 1065, 2065 and 2565 share a compact, rugged design optimized for continuous-duty vacuum in settings where low noise and steady performance are required. Typical applications include medical suction, environmental remediation, laboratory distillation and drying, and food & beverage packaging and conveying. Available documentation: product line brochure, 1065-V2A technical data sheet, and operation & maintenance manual.

Specifications

• Model: 1065-V2A
• Series: Rotary Vane (Separate Drive)
• Horsepower (HP): 0.5
• Open Flow: 8.5 CFM (60 Hz); metric: 241 LPM (60 Hz)
• Maximum Continuous Pressure: 8.5 PSI (60 Hz)
• Maximum Vacuum: 28 in Hg
• Sound Level: 77 dBA
• Weight: 23 lb (10 kg)
• Dimensions (Standard): 9.38 in L x 18.37 in W x 14.38 in H; metric: 238.3 mm L x 466.6 mm W x 365.3 mm H
• Mounting Dimensions: 1 in L x 8.5 in W; metric: 25.4 mm L x 215.9 mm W
• Regulatory: CE
• Phase: None (separate drive)
• Country of Origin: USA
