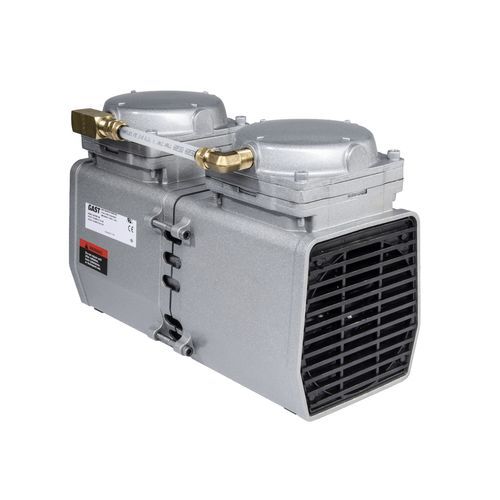

Diaphragm compressor DAA series

airACportable

Overview
The DAA-P716-EB is a 1/4 HP diaphragm compressor and vacuum pump engineered for low-noise, low-power operation in noise-sensitive environments. It provides airtight, oil-free pressure delivery with a maximum continuous pressure of 60 PSI and an open flow of 2.4 CFM at 60 Hz (115 V AC). Its chemically resistant wetted components ensure contaminant-free performance for precision fluid and air handling.

Series information
The DAA and DOA series are compact, lightweight diaphragm compressors and vacuum pumps that tolerate liquid contact and operate at cool temperatures. Units are corrosion-resistant and oil-free. Standard configurations include a muffler for vacuum use and a motor capacitor; DOA models offer additional lab-version features and optional PTFE-coated head assembly and diaphragm cover depending on configuration.

Highlights

• Chemically resistant materials: Wetted components use high-performance PPS thermoplastic and EPDM synthetic rubber for chemical, heat and corrosion resistance.
• EMI suppression: Protection for sensitive electronics against electromagnetic interference.
• Versatile functionality: Can operate as compressor or vacuum pump; available in dual-frequency, shaded-pole and PSC motor versions and multi-voltage options for global use.
• Reliability: Durable components designed to reduce downtime and maintenance requirements.

Applications
Suitable for healthcare, food and beverage, medical devices, laboratory instrumentation, and environmental monitoring where precise fluid control, accurate sampling and contaminant-free air are required.

Technical specifications

• Item #: DAA-P716-EB
• Series: DAA (Diaphragm)
• Description: Diaphragm Compressor
• HP: 0.25
• Amps: 50 Hz = 2.8 A; 60 Hz = 2.7 A; DC = —
• Weight: 28 lb (13 kg)
• Open Flow (no load): 50 Hz = 1.9 CFM (54 LPM); 60 Hz = 2.4 CFM (68 LPM)
• Flow @ Max Pressure: 50 Hz = 0.2 CFM (5.7 LPM); 60 Hz = 0.3 CFM (8.5 LPM)
• Max Continuous Pressure: 60 PSI (4.14 Bar)
• Voltage: 50 Hz = 100 V; 60 Hz = 115 V; DC = —
• Phase: Single Phase
• Regulatory: cULus
• Sound Level: 70 dBA
• Plug Type: NEMA 5-15P
• Dimensions (L x W x H): 11.76 in x 7.08 in x 7.67 in (298.7 x 179.8 x 194.8 mm)
• Mounting Dimensions: 10.00 in x 3.50 in (254.0 x 88.9 mm)
• Country of Origin (COO): USA
