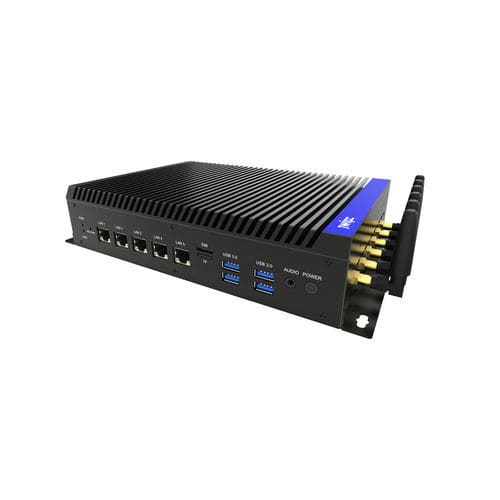

Edge AI PC JEA-E88A

boxmobileARM® Cortex®-A55 Quad-core

The JEA-E88A is a high-performance ARM mobile robot controller based on the Rockchip RK3588J SoC. It offers powerful computing capabilities, extensive interfaces, and expandability, supporting multiple sensors and peripherals. With a built-in IMU and compatibility with Linux Ubuntu and ROS, it is ideal for mobile robot applications such as CV and SLAM. Designed for industrial environments, it supports wide voltage and temperature ranges, providing a highly integrated and comprehensive control solution for robotics. System NPU 6 TOPS Neural Network performance Video HW Video Codec - H.265/H.264/VP9/AV1/AVS2 Decoder up to 8K60 H.265/H.264 Encoder up to 8K30 Audio Audio Codec - ES8336 Interface - 1x 3.5mm Line out I/O Expansion SD Card - 1x Micro SD slot SIM Card 1x Micro SIM slot Other Features Motion Tracking On-board TDK ICM-42670-P 6-axis IMU sensor Watchdog Watchdog Timer & power on/off management Real Time Clock On-board RTC chip, battery-backed Power Power Input 12~36V DC-IN (built-in power supply module) Interface 5.5x2.5mm DC Jack System Ctrl & Monitoring 1x Power button, 1x Recovery button 2x LEDs for power & SSD Mechanical - Dimensions - 230mm x 160mm x 54mm Environment - Operating Temp. 0~50℃ / -20~60℃ optional Storage Temp. -30~70℃ Humidity 10%~90% RH, non-condensing Certifications CCC
