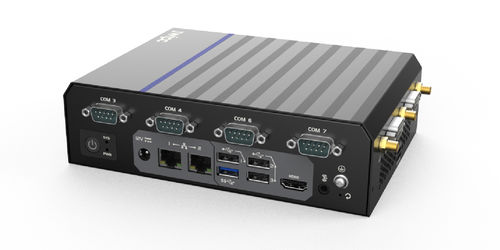

Expansion PC JEA-E68I series

embeddedwall-mountedDIN rail

The JEA-E68I is a fanless embedded industrial PC based on the Rockchip RK3568J/RK3568B2 processor. It delivers strong performance, supports multiple operating systems, and offers extensive interfaces and expansion options for a variety of industrial applications. The system supports multiple mounting methods, operates in a wide temperature range, and is certified for safety compliance. NPU 1 TOPS Neural Network performance Storage & Expansion On-board 16GB/32GB/64GB eMMC 5.1 for OS 1x Micro SD slot for storage expansion Video Graphics Engine Arm Mali-G52, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 FP HW Video Codec H.265/H.264/VP9/VP8 Decoder up to 4K60 H.265/H.264 Encoder up to 1080p60 Audio Audio Codec RK809 PMIC integrated Codec Interface 1x 3.5mm Line out 1x debug port by DB9 Other Features Watchdog - Watchdog Timer & power on/off management Real Time Clock On-board RTC chip, battery-backed Power Power Input 12V DC-IN Optional 9~36V DC-IN (typical 12/24V) with Reverse Polarity Protection Interface - 5.5x2.5mm DC Jack 2-pole lockable terminal block System Ctrl & Monitoring 1x Power button, 1x Recovery button 2x programmable LEDs 1x Recovery button 2x programmable LEDs (by pin header) Mechanical Dimensions - 187mm x 135mm x 54mm Boot Options eMMC Environment - Operating Temp. 0~50℃ / -20~60℃ / -40~70℃ optional Storage Temp. -40~85℃ Humidity 10%~90% RH, non-condensing EMC & Safety Compliance IEC 61000-4-2 ESD level 3 (Contact ±6kV, Air ±8kV) IEC 61000-4-4 EFT level 4 (Power ±4kV, Ethernet ±2kV) Certifications CCC, CE Class B
