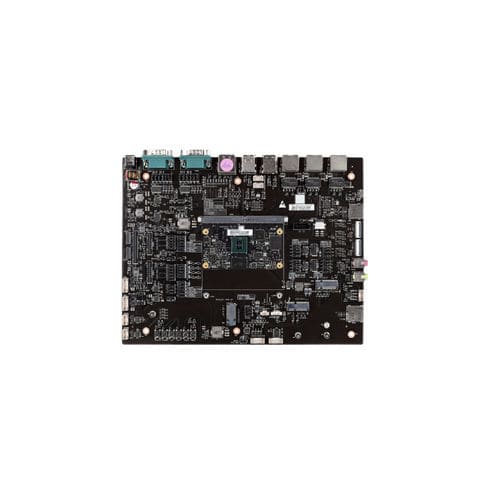

Industrial carrier board JSOM-SC211 series

JSOM-SC211 is an evaluation carrier board designed for the JSOM series Arm-based SMARC 2.1.1 Computer-on-Modules. It offers a wide range of interfaces and expansion options and supports -40~85℃ operating temperature. JSOM-SC211 is offered along with carrier board reference design schematics and layout checklist documentation, allowing for easy custom carrier board development and accelerating Compatible Module JSOM-N8MC, JSOM-N8PC, JSOM-R68C, JSOM-R88C Camera Input - 2x 2-lane MIPI-CSI (24-pin 0.5mm FPC) Audio - 1x 3.5mm Line out 1x 3.5mm Mic in 1x Speaker (2x3W) via pin header CAN 2x CAN FD via pin headers SPI 2x SPI via pin headers GPIO 8x GPIO via pin headers Board Features Watchdog Timer, RTC, Power button, Reset/Recovery button Power Supply 12V DC IN via 5.5x2.5mm DC Jack, supports Lithium battery power Operating Conditions -40~85℃, 10%~90% RH non-condensing Storage Conditions - -40~85℃, 5%~95% RH non-condensing
