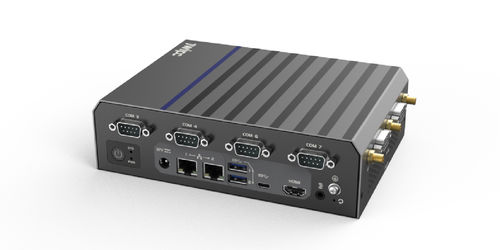

Box PC JEA-E76I series

embeddedwall-mountedDIN rail

The JEA-E76I is a fanless embedded industrial PC based on the Rockchip RK3576J SoC. It offers high performance, rich interfaces, and versatile expansion capabilities, supporting multiple operating systems for a range of industrial control and embedded applications. The system features a high-performance CPU and NPU, dual 4K display output, multiple network connectivity options, extensive I/O interfaces, and an optional wide-temperature operating range to meet diverse industry requirements. NPU - 6 TOPS Neural Network performance Video - Graphics Engine - Arm Mali-G52 MC3, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0 FP HW Video Codec - H.265/H.264/VP9/AV1/AVS2 Decoder up to 8K30 or 4K120 H.265/H.264 Encoder up to 4K60 Supports dual independent display Audio Audio Codec - ES8336 Interface 1x 3.5mm Audio (CTIA) Other Features Watchdog Watchdog Timer & power on/off management Real Time Clock On-board RTC chip, battery-backed Security On-board Z32H330TC TPM 2.0 module (optional) Power Power Input 12V DC-IN Optional 9~36V DC-IN (typical 12/24V) with Reverse Polarity Protection Interface 5.5x2.5mm DC Jack 2-pole lockable terminal block System Ctrl & Monitoring 1x Power button, 1x Recovery button 2x programmable LEDs 1x Recovery button 2x programmable LEDs (by pin header) Mechanical Dimensions 187mm x 135mm x 54mm Boot Options eMMC Environment Operating Temp. 0~50℃ / -20~60℃ / -40~70℃ optional Storage Temp. -40~85℃ Humidity 10%~90% RH, non-condensing EMC & Safety Compliance IEC 61000-4-2 ESD level 3 (Contact ±6kV, Air ±8kV) IEC 61000-4-4 EFT level 4 (Power ±4kV, Ethernet ±2kV) Certifications CCC, CE Class B
